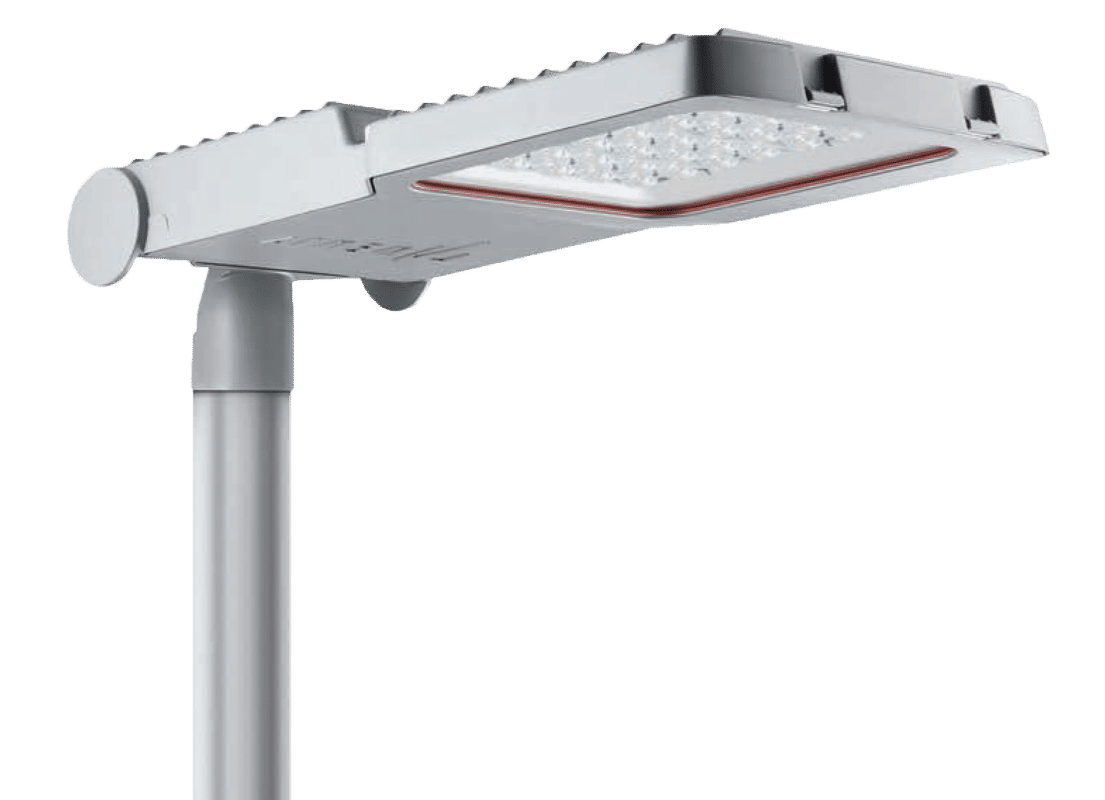

Road and rail lighting luminaire of modular construction designed for easy maintenance.

Tool-less upgrades of key components including power supply and light engine along with field-replaceable LED modules make the luminaire fully future proof, and easy to upgrade.

Made from high pressure die-cast aluminium, the AL61000 series is available in two body sizes and offers six standard lumen packages, from 1200 to 15,600 lumens.

  • Controls; Dali, 1-10V, RF or PLC (specify at enquiry)

  • Efficacy up to130 lm/W

  • Integrated 5 level dimming module (optional)

  • Constant light output (optional)

  • Flexible luminous flux

  • IP66 and IK09 rated

  • Colour temperature 4000K as standard (options available)

  • CRI =70 (80 optional)

  • Standard surge protection 6kV
