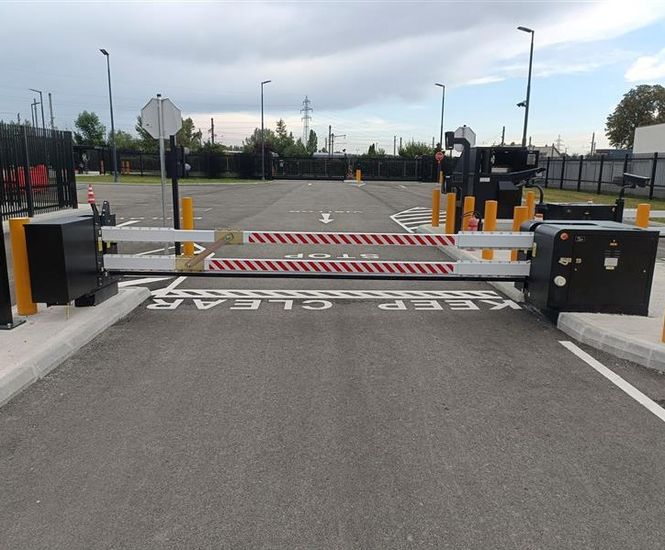

The RiseGuard RCS impact-tested rising arm barrier, part of Barkers' Resilient Crash Series, is available as either manual or automatic with a locking pin to secure the barrier. Accredited to stop a 7.2 tonne vehicle at 40mph (tested at a clear opening of 7.1m).

The automatic version has a hydraulic locking pin securing the boom in the closed position, that does not rely on impact for the beam to engage catch.

The robust and rigid construction of the barrier achieved a very low penetration with shallow foundations.

Features

  • Accredited by IWA 14 to stop a 7.2 tonne vehicle 100%

  • Duty-rated for continuous use

  • Low penetration

  • Shallow foundations

  • Manual or automatic

Impact classification

Vehicle Weight (kg)

Vehicle Weight

Vehicle Type

Vehicle Type

Vehicle Type

Vehicle Type

RiseGuard RCS: V/7200[N2A]/64/90:3.0

N2A

N2A

64

90

3

Specifications

Material

Operating Speed (Auto)

Power (if required)

Span

Standard Foundation

Posts: steel Boom: aluminium

15-20 seconds + 3-4 seconds for locking pin

230v 50Hz 16A

Min: 3.8m Max: 7.m
Tested at: 7.1m

400mm (comprising 20mm blinding, 330mm C40 concrete, 50mm surface finish)
