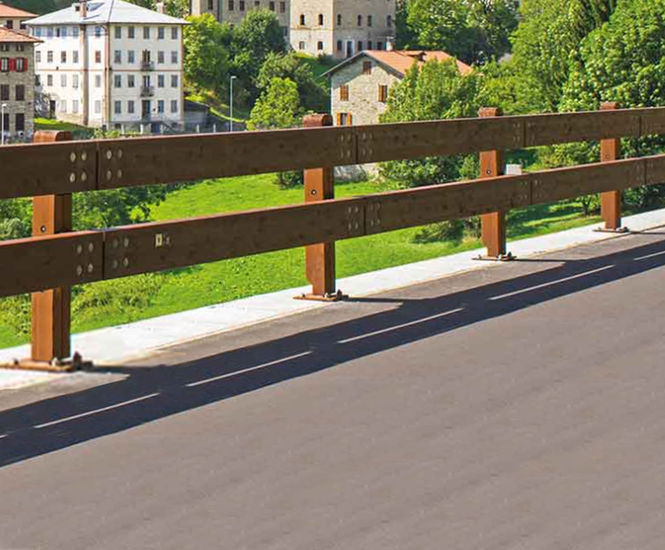

H2BP-03 bridge safety barriers are made of laminated wood and corten steel, CE certified according to the harmonised standard EN 1317-5 with containment level in H2 class, CE certificate n°0497/CPR/3481 (first issue on 17/03/10) issued by CSI SPA – Bollate (MI).

Benefits

  • H2 crash-rated

  • Natural timber appearance

  • Fully recyclable materials

  • Modular system

  • Easy to install

  • Optional handrail

Typical applications

  • Bridges

Barrier specification

  • Containment class: H2

  • Containment level: 288 KJ

  • Crash test length: 78m

  • Working width: W4 = 1.3m

  • Vehicle intrusion: W4 = 1.3m

  • Concrete curb: tarmac Level

  • Height from tarmac level: 660-1100mm

  • Post spacings: 3m
