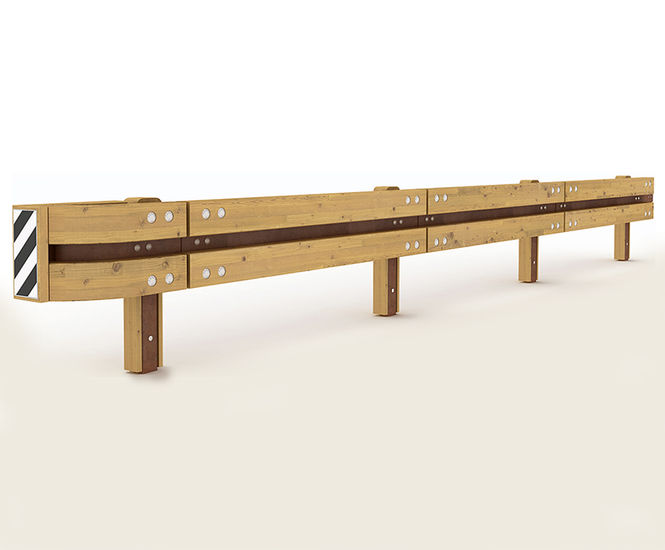

The T50-01energy-absorbing terminal in laminated wood and steel for road barriers has been successfully tested for Class T50 performance according to the current draft of the CEN/TS on terminals (ex prEN 1317-7) .

It can also be installed as a retrofit adaptation for all curved type terminals for two-band barriers already installed on the road.

Designed in collaboration with CrashTech.

Benefits

  • Terminal Class T50

  • Natural timber appearance

  • Fully recyclable materials

  • Modular system

  • Easy to install

  • Fully compatible with other products in the range

Typical applications

  • Public roads

  • Paths

  • Country roads

Barrier specification

  • Reference standard: CEN/TS terminals

  • ASI index: 0.9

  • Impact severity class: A

  • VCDI index: FS1010000

  • Permanent lateral displacement: 0.10m

  • Exit box approach side:1.54m

  • Exit box departure side: 3.22m

  • Exit box class: Z1
