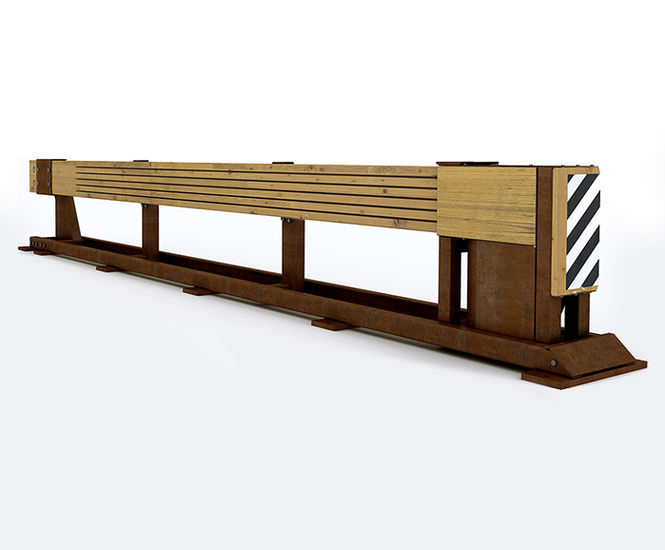

The P1-01 Beaver timber energy-absorbing terminal for safety barriers has passed full testing for Class P1 in compliance with UNI ENV 1317-4: 2003.

Benefits

  • Terminal class P1

  • Natural timber appearance

  • Made from fully recyclable materials

  • Modular system

  • Easy to install

Typical applications

  • Public roads

  • Paths

  • Country roads

Barrier specification

  • Reference standard: ENV 1317-4

  • ASI index: 0.8

  • Impact severity class: A

  • VCDI index: FS 0000000

  • Permanent lateral displacement: 2.83m

  • Exit box approach side:0m

  • Exit box departure side: 4.60m

  • Exit box class: Z2

Designed in-house with technical input from LAST Laboratories at the Milan Polytechnic University, it is compatible with Urban Fencing's full product range and is the first ever crash cushion made of laminated wood and corten steel. Beaver completes the Margaritelli Road Safety product range, guaranteeing road users the highest level of protection.
