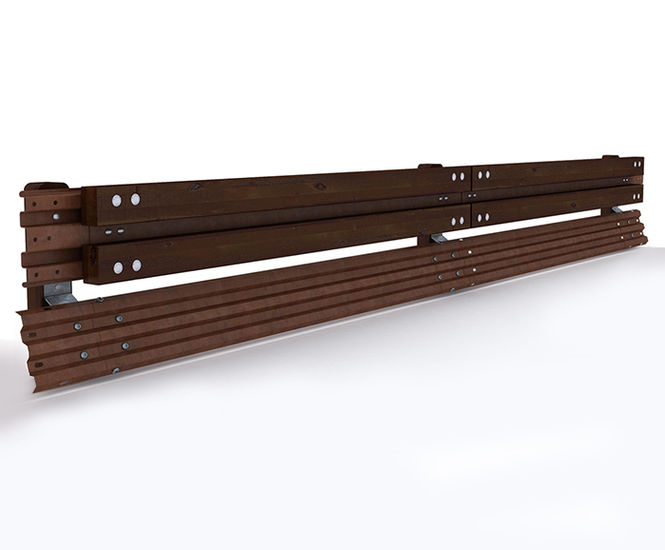

H1BL-01 roadside safety barriers are made of laminated wood and corten steel, CE certified according to the harmonised standard EN 1317-5 with containment level in H1 class.

Integrated with RiderPro-MRS-03 continuous motorcyclist protection system, tested by the ISO 17025 certified proving ground CSI, according to the technical specification CEN/TS 17342, speed class 60 km/h.

Benefits

  • H1 crash-rated

  • Natural timber appearance

  • Fully recyclable materials

  • Modular system

  • Easy to install

  • Optional handrail

Typical applications

  • Retail parks

  • Parks

  • Preservation areas

  • Picnic areas

  • Country roads

  • Highways

Barrier specification

  • Containment class: H1

  • Containment level: 127 kj

  • Crash yest length: 81m

  • Working width: W5 = 1.7m

  • Post embedment: 1000mm

  • Height from tarmac level: 830mm

  • Post spacings: 3m

RiderPro specification

  • ISO 17025 proving ground: CSI SpA

  • Reference standard: CEN/TS 17342

  • Performance class: 60 km/h

  • Post spacing: 3m
