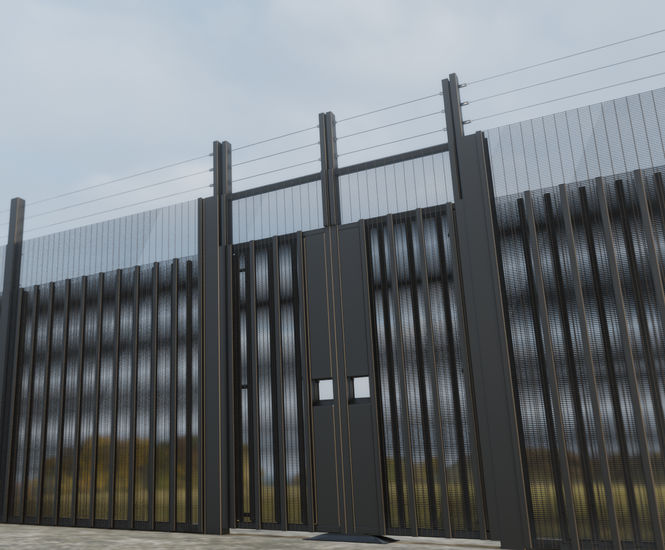

CLD’s LockMaster S4 swing gates have been specially developed to blend in seamlessly with a CLD fence line.

Using CLD’s Securus S4 mesh panels, LockMaster S4 offers the highest level of security-rated access control, whilst maintaining aesthetics.

Rigorously tested by the Loss Prevention Certification Board (LPCB) to guarantee a minimum delay of 10 minutes against attack, LockMaster S4 is also Secured by Design accredited, making it a police preferred specification for security.

Features

  • Security-rated gates

  • Double- or single-leaf opening

  • Opening in or out

Technical data

  • Standard: LPS 1175 D10 (SR4) Issue 8; BS1722-14: 2017; BS EN ISO 1461:2009; BS EN 13438:2013; Secured by Design - Police Preferred Specification

  • Description: open mesh steel high-security gate system with mesh infill, to match fencing

  • Infill panels options: Securus S4

  • Panel width: to suit mesh infill panels:
    - Single leaf: 900-2500mm
    - Double leaf: 1200-8000mm

  • Heights: 2800-5000mm to match fence panel; single leaf gates always have lintel panel

  • Nominal heights; 2.8-5m

  • Finish: polyester powder-coated to 60-80 microns or 160-200 microns with marine grade and metallics; any RAL colour available

  • Gate frame: to suit mesh infill panels:
    - Vertical stiles: minimum of 100 x 50 x 3mm rectangular hollow section
    - Horizontal rails: minimum of 100 x 50 x 3mm rectangular hollow section
    Galvanised and powder-coated to match fencing

  • Topping options: required - saw tooth, barbed wire, razor wire, cranked or straight

  • Configuration: double- / single-leaf / opening inwards or outwards as required

  • Locking: slide bar with certified padlock

  • Hinges: 3 x Superhinge

  • Post dimensions: SH30 150 x 150mm min

  • Foundations: posts baseplated and fixed with M20 min anchors in suitable concrete foundation 100mm below finish ground level.

  • Warranty:
    - Gate: minimum 15 years against manufacturing defects
    - Auto-element: minimum 12 months
