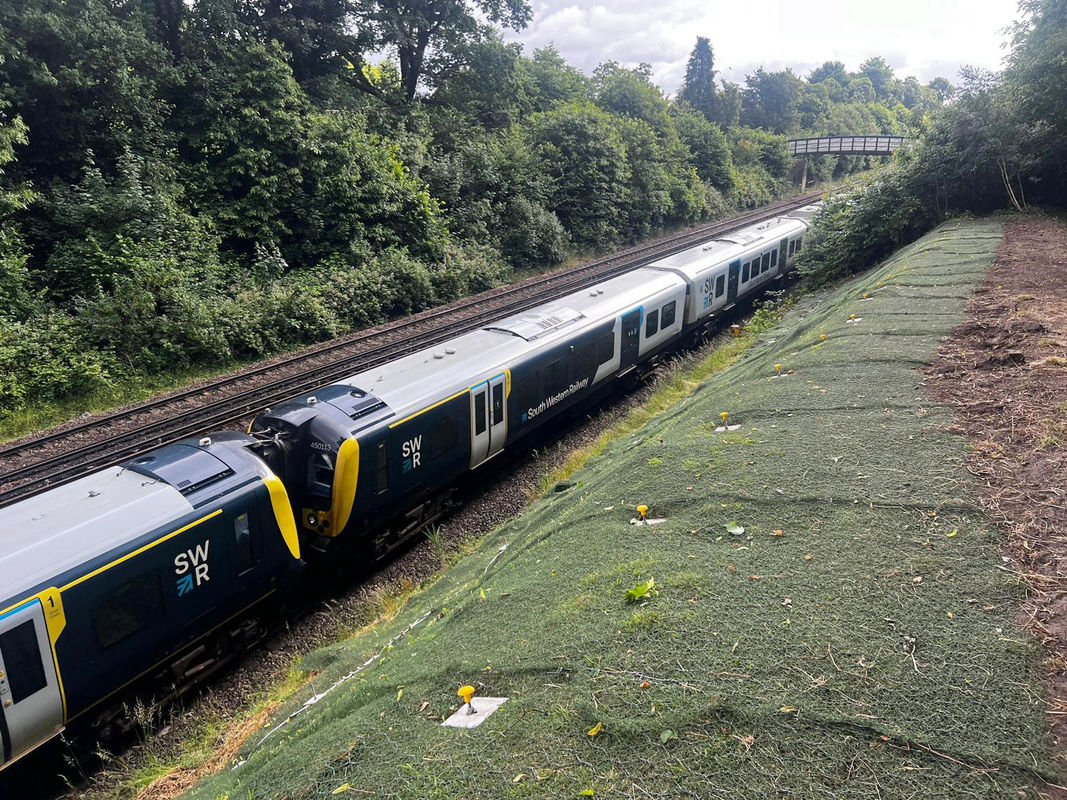

Platipus Low Carbon Anchoring Solution (LCAS®) was used to address movement issues on a slope next to a rail track

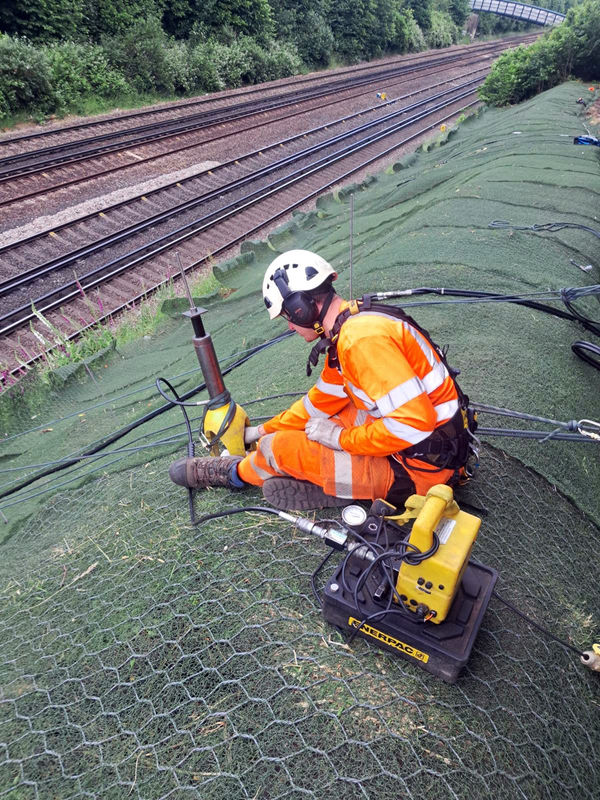

Each anchor was driven to a depth of 3m before being tensioned to a working load of 20kN

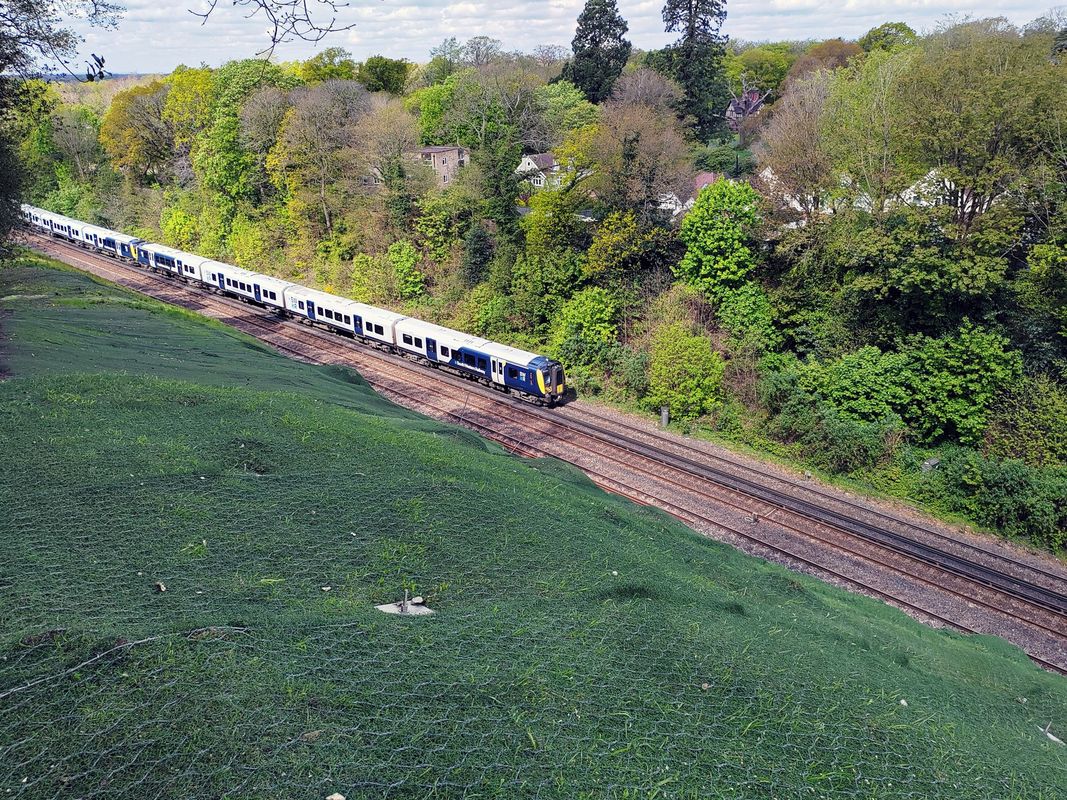

Movement was detected by slope monitors along a 140m-long and 40m-high stretch of railway cutting near Farnborough

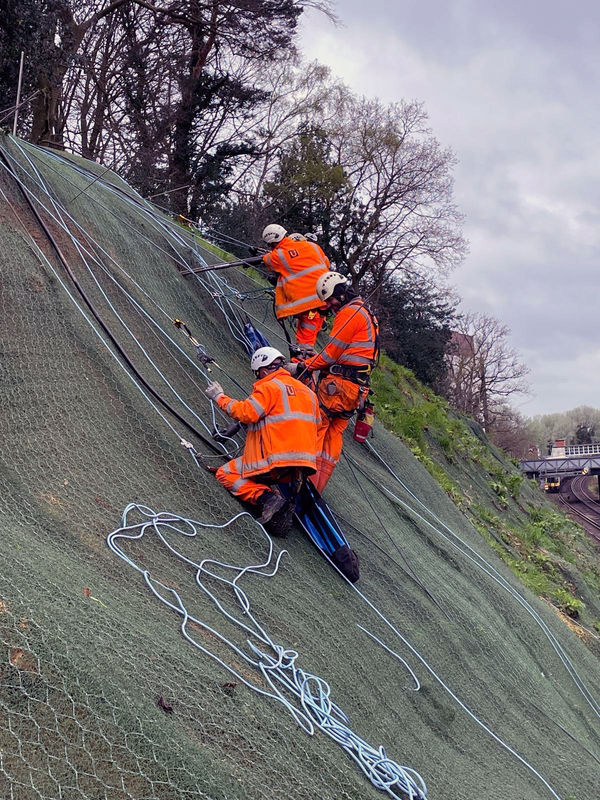

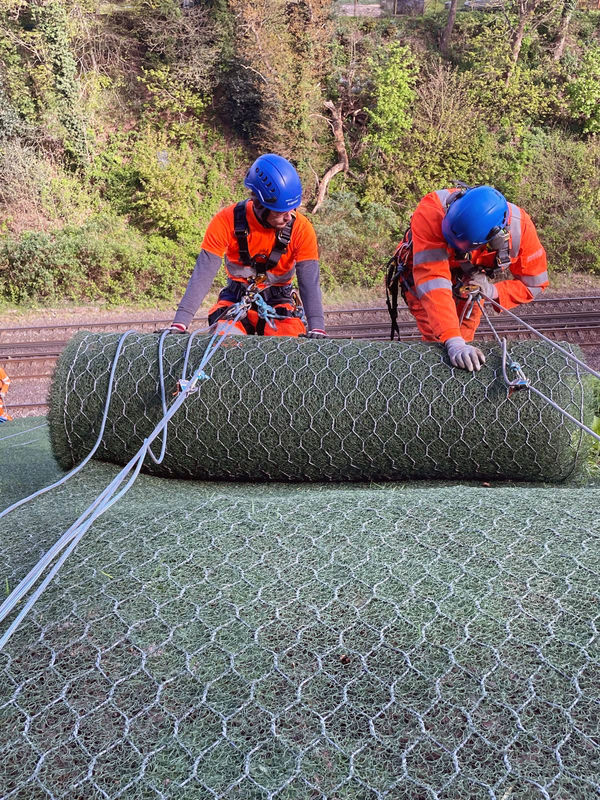

Rope access was used to install the reinforced geomat and ground anchors on the 45-70° gradient slope face
A total of 770 Platipus S6 anchors were installed to secure 4000m2 of geomat
Anchors provide verifiable performance and create an intimate contact with the slope face to encourage vegetation growth

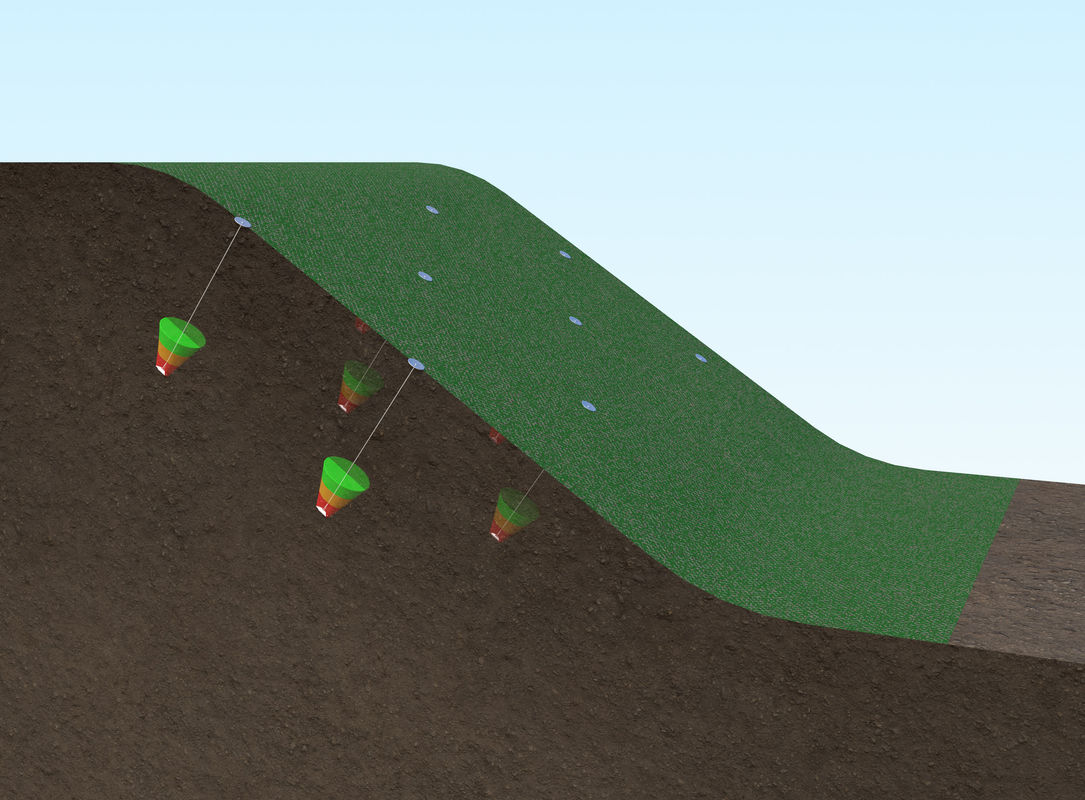

Platipus S6 anchors diagram
