Corden EPS Geo-membrane – LLDPE (Smooth) is a linear low-density polyethylene membrane, for use in accordance with harmonised standards:

  • BS EN 13361: Characteristics required for use in the construction of reservoirs and dams.

  • BS EN 13362: Characteristics required for use in the construction of canals.

  • BS EN 13491: Characteristics required for use in the construction of tunnels and underground structures.

  • BS EN 13492: Characteristics required for use in the construction of liquid waste disposal sites, transfer stations, or secondary containment.

  • BS EN 13493: Characteristics required for use in the construction of solid waste storage and disposal sites.

  • BS EN 15382: Characteristics required for use in the construction of transportation infrastructure.

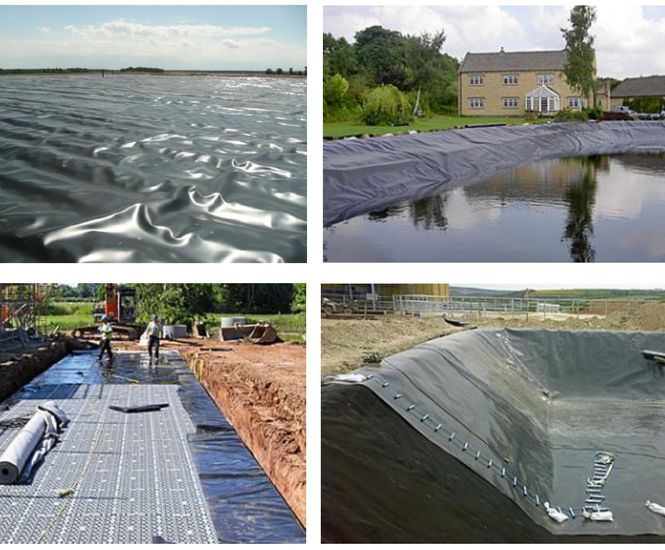

Applications

  • Reservoirs

  • Dams

  • Canals

  • Tunnels and below ground structures

  • Liquid waste containment and disposal

  • SuDS attenuation schemes for flood water management

Dimensions

5.1 Width x 300 Length x 0.75mm Thickness

5.1 Width x 200 Length x 1.0mm Thickness

5.1 Width x 150 Length x 1.5mm Thickness

5.1 Width x 120 Length x 2.0mm Thickness

8.0 Width x 200 Length x 1.0mm Thickness

8.0 Width x 150 Length x 1.5mm Thickness

8.0 Width x 120 Length x 2.0mm Thickness

Properties

Download data sheet for full details

Handling

Roll weights can be in excess of 75kg and hence appropriate care and equipment is required for unloading and handling.

Storage

Rolls of Corden EPS Geo-membrane – LLDPE should be stored on stable/level ground and stacked not more than five rolls high, with no other material stacked on top. The rolls can be stored outdoors when packaged, but should be protected from exposure to UV.

Installation

Corden EPS Geo-membrane – LLDPE should be installed in accordance with the product installation guidelines.

Jointing and Sealing

Corden EPS Geo-membrane – LLDPE should be jointed and sealed in accordance with the product installation guidelines.
