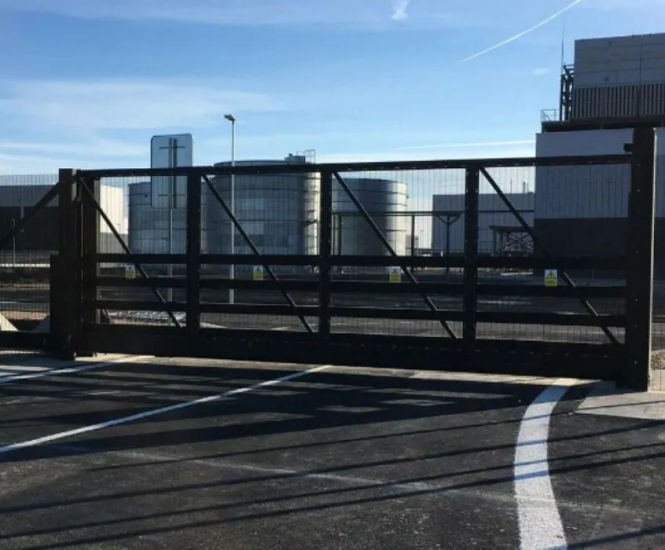

SlideGuard RCS is an impact-tested, automatic cantilever gate accredited by PAS 68 to stop a 7.5 tonne vehicle. With two versions tested to mitigate the threat of vehicles travelling at 40mph and 50mph.

The gate and locking pin can either be powered electronically or by a hydraulic motor depending on the site requirements. Both maintain a smooth and quiet motion in both directions.

Tested at an 8m clear opening, and at 50mph achieved 1.6m of dynamic penetration.

As a safety precaution, a light curtain, CAT 3 safety edges and an emergency stop button are fitted as standard. Together, these safety devices reduce the risk of entrapments, crushing and shearing, ensuring compliance with British Standards and EN 12453:200.

In the event of a power cut or fault, the gate can be operated manually. It has a powerful PLC with built in diagnostics and programmable inputs and outputs that can provide numerous options depending on client requirements.

Key features

  • Accredited by PAS 68 to stop a 7.5 tonne vehicle

  • Two versions available; 40mph or 50mph

  • Trackless

  • Smooth and quiet

  • Moving at 250mm per second

  • Heavy-duty cantilever rolling gear

  • High-quality bearings and rollers

  • 8m clear opening

Specification

  • Material: mild steel, hot dip galvanised and powder coated

  • Power: 240Volt 50hz 16amp

  • Standard foundations (mm): may vary depending on gate size, infill and ground conditions

Impact classification

Product

Vehicle Weight (kg)

Vehicle Type

Test Speed (kph)

Impact Angle (°C)

Penetration (m)

Dispersion of Debris (m)

SlideGuard RCS (40mph): V/7500[N2]/64/90:5.6/10.1

7,500

N2

64

90

5.6

10.1

SlideGuard RCS (50mph): V/7500[N3]/80/90:1.6/5.4

7,500

N3

80

90

1.6

5.4
