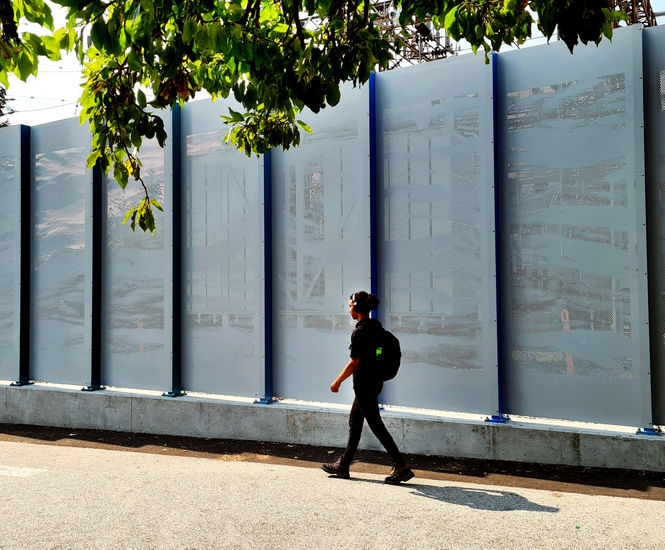

Picture-Perf™ fencing is manufactured from aluminium or stainless steel at heights of 2.0, 2.4, 3.0 and 4.0m.

Picture-Perf™ fencing provides increased safety and visual impact compared to standard laser-cut fencing systems due to the perforation process:

  • A maximum of 8mm perforations prevents any areas for finger traps.

  • The innovative fixing system removes any gaps between panels and posts.

  • Two perforations are available: PicturePerf™ or Pattern-Perf™.

Specifications

  • Heights: 2000, 2400, 3000, 4000mm

  • Panel size: 1500mm

  • Post size:
    - 120 x 60 x 3mm (2.0, 2.4m)
    - 180 x 80 x 3mm (3.0, 4.0m)

  • Top edge: flush

  • Post centres: 1453mm

  • Materials: aluminium | stainless steel

Finish

Where applicable, all Zaun posts / panels / gates and painted auxiliary components (eg clamp bars, slide bolts etc) benefit from a protective zinc layer and electrostatically-applied polyester powder coating to BS 1722-16. Care is taken with pre-treatment to ensure sound adhesion between the zinc and paint layers.

In a UK C1 environment, as defined in ISO 12944-2, this should ensure a useful life expectancy of the fence of at least 15-20 years. Life expectancy in all environments can be extended by maintaining the fencing with regular washing.

Useful life will be reduced if the fencing is damaged. Any coating damage should be repaired to reduce the effect on useful life.

Enhanced painting systems such as marine coatings are available for improved life expectancy in C2-C5M environments.

Applications

Schools and playgrounds
Safety features make Picture-Perf fencing ideal for securing schools and playgrounds. The ability to incorporate designs or mascots can further enhance the space.

Public buildings and spaces
Perforated fencing with intricate patterns or even the incorporation of a building's logo can elevate the visual appeal of public buildings and spaces.

Commercial properties
Businesses can leverage Picture-Perf fencing to enhance their brand image by incorporating logos or other design elements.

Zoos and wildlife parks
One of the great applications of Picture-Perf is the inclusion as a hero panel within other weld mesh fencing systems. Having the animals in the enclosures represented on the fencing is just one of the many advantages of using picture-perf fencing and gates.

Healthcare and hospitals
With perforations less than 8mm, Picture-Perf offers zero finger traps and so can be used in seclusion gardens for mental health units or to create hospital garden screening.
