The Jaksun™ solar fence panel incorporates solar energy into fencing. Providing new opportunities for sustainable developments, Passivhaus constructions, schools, commercial properties, and anywhere requiring a robust fence, or with sustainability credentials to meet.

Combining a 425W solar panel with Jacksons' trademark Jakcure® pressure-treated timber, Jaksun is a highly sustainable fencing option, harnessing the sun to produce energy.

With a 25-year guarantee on the timber against rot and insect attack, 25-year product warranty, and 25-year linear power output warranty provided by the solar panel manufacturer, Jaksun is an investment for the future.

Key Features

  • 25 year guarantee on timber components

  • 25 year warranty on solar panel and linear power output from manufacturer

  • Pair with our slotted posts and capping rail

  • Jackson's recommend combining with any of our 0.6m high timber fence panels

  • 425W electrical peak power

  • The solar component integrated into the fence is MCS certified

Specifications

  • Dimensions: 1830 (w) x 1170 (h) x 50mm (t)

  • Electrical peak power: 425W

  • Vmpp: 32.96V

  • Voc: 39.23V

  • Impp: 12.90A

  • Isc: 13.93A

  • Finish: Jakcure® treated timber

Warranties / guarantees

  • 25-year Jakcure® guarantee on all timber components

  • 25-year product warranty and linear solar output from solar panel manufacturer

Installation

Must be installed with a gravel board to comply with 25-year guarantee terms, slotted posts that are adapted for cables, and capping rail, which is essential to conceal the cable.

Once the fence is installed, the solar panels need connecting to a mains / inverter system (not provided), by a MCS certified / qualified solar PV installer that is also a member of a CPS from microgeneration technology, such as NICEIC.

JaksunTM can be installed as a standalone fence panel between slotted posts, or on top of another timber fence panel between slotted posts. Increased efficiency and performance is expected when panels are raised off the ground.

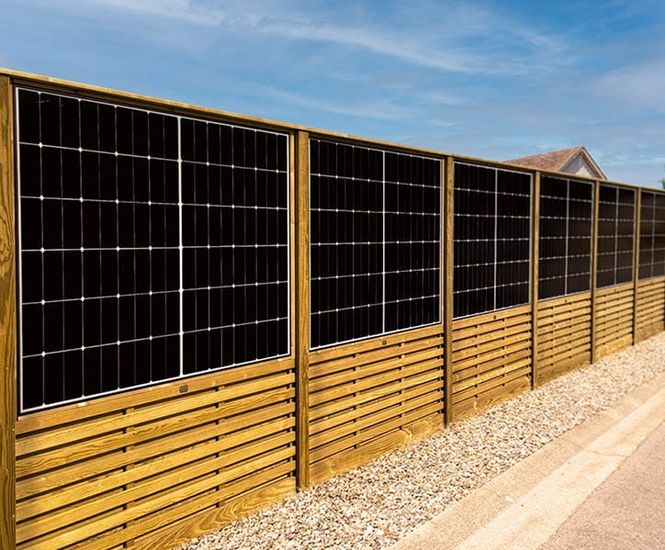

In the photos it is seen on top of Venetian Hit and Miss fence panels at 600mm high, a gravel board at 140mm high, and capping at 20mm high, giving a fence height of 1930mm.

Other panel combinations are available but anything over 2m high will generally require planning permission. Please note, the solar fence panels cannot be cut down in any way. If the end of the run requires cutting to width, then Jacksons recommends using a full height panel to match the same as the panel installed under Jaksun.

Options

  • Choice of timber fence panel underneath (sold separately)

  • Works with standard and heavy-duty Jakposts, to be modified on site

  • Capping rail - essential to conceal cables

Jaksun® Solar Fence Panel Specification

   Height
(mm)

  Width
   (mm)

Thickness
(mm)

1170

1830

50
