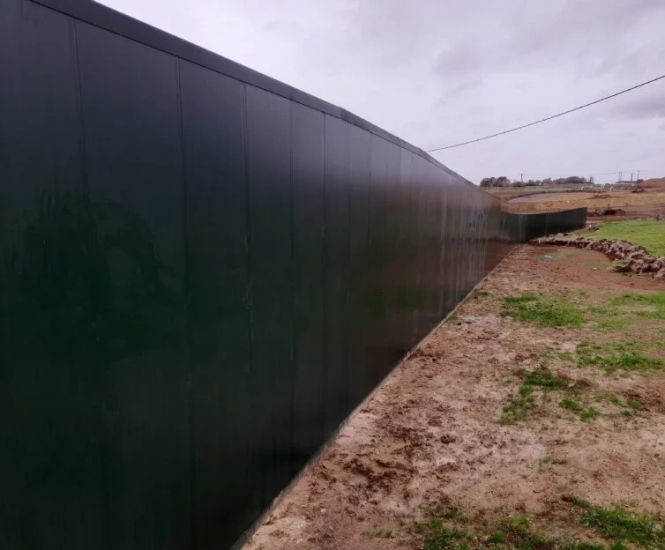

HoardSafe S1 is a security rated perimeter hoarding system. It is manufactured from composite recycled plastic panels. The panels click easily into place and are installed on steel rails.

HoardSafe S1 incorporates Securus steel mesh panels to the rear and has been certified by the Loss Prevention Certification Board (LPCB) to provide a minimum of 60 seconds delay against attack.

The system can be fixed onto blocks or installed onto in ground foundations.

HoardSafe panels can be vinyl wrapped with an advertising message and can be re-wrapped for use time and again. CLD offers the option of hire or purchase for this unique hoard system.

Key Features

  • Security rated site hoarding

  • Sustainable alternative to site hoarding

  • Easily updates to a permanent fenceline

  • BS EN 1991 wind loading tested to in excess of 100 mph

  • Available to hire or purchase

  • Ideal for Sensitive construction sites requiring high security, or protecting people in open spaces

Dimensions

Panel Width
500mm minimum

Wire Diameter
4mm minimum

Mesh Size
76.2 x 12.5 mm

Available Heights
1806mm to 3006mm

Nominal Heights
1.8m to 3m

Post Dimensions
80mm x 60mm

Finish

Options:

  • Polyester powder-coated to 60-80 microns

  • 160-200 microns with marine grade and metallics

  • Any RAL colour available

Technical Specifications

  • Panel Type: 35mm thick recycled PVC board, 500mm wide panels, height to suit CLD Securus mesh panel to rear

  • Fixings: M8 cup square bolt with washer & hex nut

  • Panel installation: Bottom rail to follow ground level

  • Topping Options: Options such as anti-climb available on request

  • Posts: Special flanged post, galvanised after manufacture

  • Maximum Post Centres: 2520mm

  • Foundations: Post fixed to kentledge block using 4 way adjustable bracket. Ground bury option. Can also be dug in. Set posts in holes minimum of 450mm square x 800mm deep. Note: Contractor/ client is responsible for the foundation size suitable for the ground conditions and height of fence

  • Warranty: Minimum of 15 years against manufacturing defects
