ACO Easyline is suitable for installations requiring low-profile drainage for smaller surface areas such as balconies, terraces, facades and thresholds. With a depth of only 50mm, ACO Easyline is ideal for domestic installations where depth is at a premium, but care should be taken to check the channel can adequately drain the paved surface
Click for full image

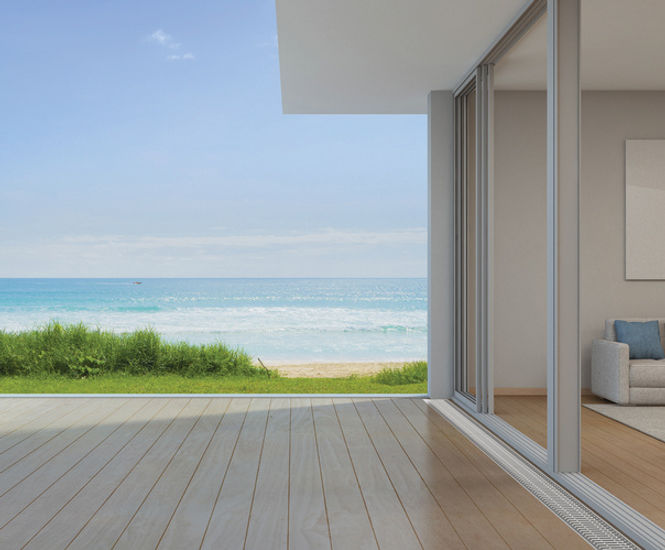

ACO Easyline H50 low-profile plastic drainage channel for domestic applications
ACO Easyline H50 is a low profile plastic drainage channel system for domestic use, designed for areas with limited installation depth such as balconies, terraces, facades, and thresholds. Made from black plastic with a choice of matching or galvanised steel grating, it features interlocking joints, built-in sealing, and a range of accessories for flexible connection options.
Low profile drainage channel system for domestic settings
50mm depth suits installations where space is limited
Interlocking joints allow straight and right angle configurations
Built-in sealing joint for watertight connections
Lightweight construction for easy handling and installation
Accessories support end, side, and vertical drainage connections
CE marked and certified to Load Class A 15 (BS EN 1433:2002)
Applications
Balconies
Terraces
Building thresholds
Facades
Patios
Dimensions
Channel depth 50mm
Performance
Drains up to 35m² paved area per 5m run during 50mm/hour rainfall (single outlet)
Materials
Made from black plastic
Finish
Black plastic or galvanised steel grating
Options and variations
Plastic channel with matching grating or galvanised steel grating
