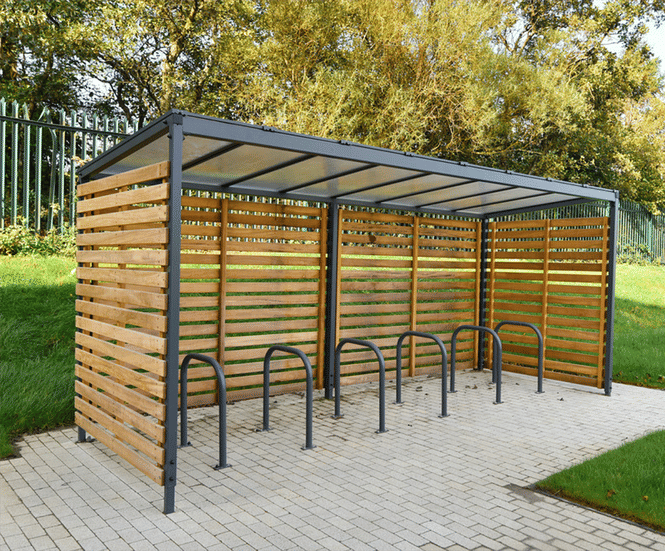

Linear by Broxap is cycle shelter made from timber cladding and galvanised steel, with multiwall polycarbonate roof. Horizontal slats and a choice of timber species allow for customisation. Fire-rated treatment and various gate, size and finish options are available.

  • Cycle shelter with timber and steel construction

  • Horizontal slat design to rear and sides

  • Multiwall polycarbonate roof for weather protection

  • Customisable sizes, gates and finishes

  • Optional fire-rated treatment

  • Choice of timber species and powder-coated colours

  • Surface or submerged baseplate installation

Applications

  • Schools and academies

  • Railway stations and transport hubs

  • Public spaces

  • Commercial and workplace bike storage

  • Leisure and community facilities

Dimensions

Length: 4100 / 5000mm

Width: 2000mm

Height: 2200mm

Materials

Mild steel frame, galvanised to BS EN ISO 1461:2022

Non-structural pressure-treated softwood

16mm structured multiwall polycarbonate roof

Colours

Nimbus Grey

Traffic Red (RAL 3020)

Black (RAL 9005)

Holly Green

Yellow (RAL 1023)

Goose Grey

Mid Blue (RAL 5015)

Dark Blue (RAL 5013)

White (RAL 9016)

Anthracite Grey (RAL 7016)

Finish

Galvanised or powder coated

Options and variations

Multiple sizes

Mesh or timber-clad gates

Fire-rated treatment

Clear / opal / bronze roof cladding

Installation

Submerged

Surface-fixed baseplates

Accreditations

Galvanised to BS EN ISO 1461:2022
