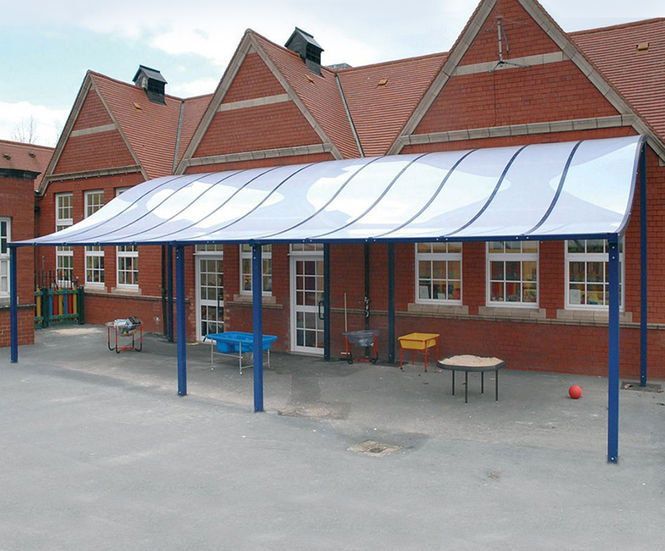

Plymouth Wave Senior Canopy is a modular outdoor structure with a curved roof and supports, designed to create covered entrances or sheltered areas. Mild steel framework, it is suitable for a range of sizes and finishes, with options for rainwater management and lighting.

  • Outdoor canopy system with curved roof and modular expansion

  • ClearView PETg UV roof panels for natural light and UV protection

  • Minimal support columns maximise open space beneath

  • Anti-climb end frames and submerged fixings for safety

  • Hot dip galvanised steel to BS EN ISO 1461

  • Customisable sizes, colours, and finishes

  • Optional rain guttering and internal or solar lighting

Applications

  • School entrances

  • Outdoor classrooms

  • Covered dining areas

  • Walkways and waiting areas

  • Public buildings

  • Community spaces

Dimensions

  • Width: 4000mm

  • Length: 4100mm or 5000mm (other sizes on request)

  • Height: 3680mm back and 2380 front

Materials

  • Framework - Mild steel

  • Cladding - 16mm structured multi-wall polycarbonate

  • Fasteners - Zinc plated

  • Cover Strips - Aluminium capex

Colours

Cobalt Blue RAL 5013

Goose Grey BS 4800 00-A-05

Holly Green BS 4800 14-C-39

Jet Black RAL 9005

Nimbus Grey BS 4800 10 A 07

Sky Blue RAL 5015

Traffic Red RAL 3020

Traffic White RAL 9016

Traffic Yellow RAL 1023

White Aluminium RAL 9006

Anthracite Grey RAL 7016

Finish

Hot dip galvanised to BS EN ISO 1461

Powder coated colour options

Options and variations

  • Various sizes & bespoke versions available

  • Trapezoidal Roof Cladding (other finishes available)

  • Rain guttering

  • Internal lighting or solar lighting

  • Installation service available

Installation

Welded end frames and purlin sections assembled with anti-tamper bolts

Submerged fixing

Accreditations

Hot dip galvanised to BS EN ISO 1461
