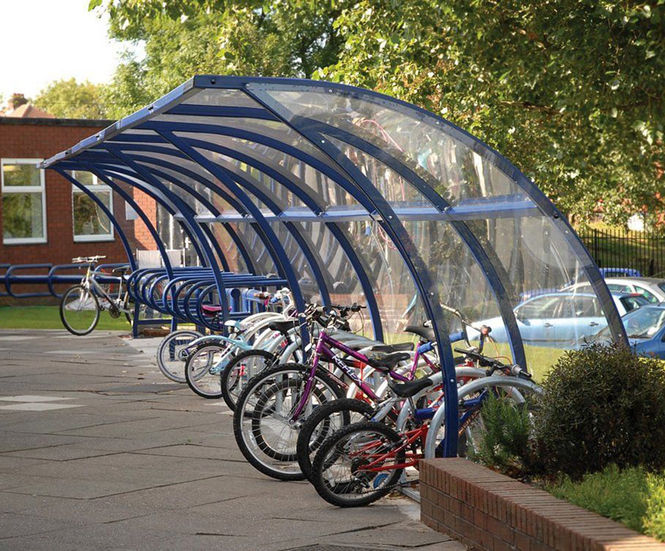

The Littleborough cycle shelter uses the basis of the Wardale design whilst utilising curved front end frames which offered a reduced footprint, ideal for areas where space is minimal, with modular units the Littleborough cycle shelter can be linked together to create banks of shelters which allow to you accommodate almost any quantity of cycles.

Features

  • Polycarbonate End Panels Included.

  • Robust modular construction featuring load bearing purlins.

  • Welded end frames and purlin section made from heavy-duty box section assembled with anti-tamper high strength bolts.

  • Anti-climb end frames.

  • Adjustable base plates.

  • Hot dipped galvanized to BS EN ISO 1461:2009

  • 4mm ClearView PETg UV roof and side cladding (5mm also available)

  • Breeam Compliant Configurations

 Materials Used

  • Framework - Mild Steel

  • Cladding - 4 mm PETG uv

  • Fasteners - Zinc Plated

  • Cover Strips - Pre-galvanized steel flat

Standard Unit Size

  • Length: 4100mm

  • Width: 2140mm

  • Height: 2150mm

Capacities

  • 3600mm - 8 Cycles

  • 4100mm - 10 Cycles

  • 5000mm - 12 Cycles

Options

Colours / Finishes

  • Galvanised Only

  • RAL 9006 - White Aluminium

  • RAL 7016 - Anthracite Grey

  • BS 4800 10 A 07 - Nimbus Grey

  • RAL 3020 - Traffic Red

  • RAL 9005 - Jet Black

  • BS 4800 14 C 39 - Holly Green

  • RAL 1023 - Traffic Yellow

  • BS 4800 00 A 05 - Goose Grey

  • RAL 5015 - Mid Blue

  • RAL 5013 - Dark Blue

  • RAL 9016 - Traffic White
