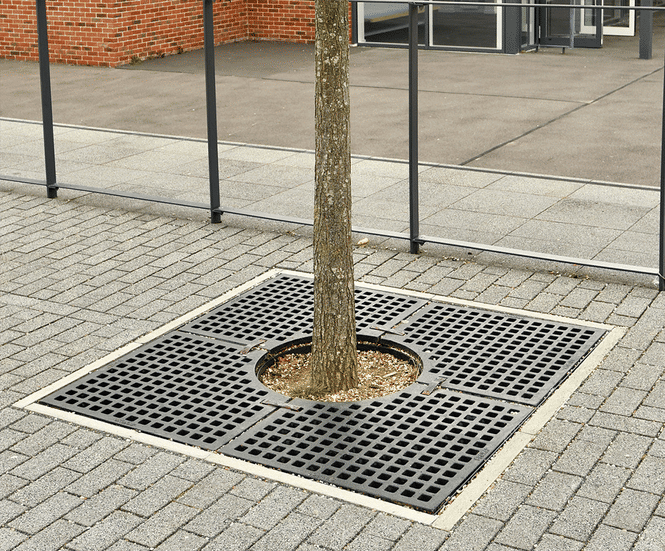

Riviere Square Hole Tree Grille - cast iron tree guard
Riviere Square Hole Tree Grille is a cast iron square tree grille designed to protect tree roots in urban environments, allowing water and air to reach the soil. Customisable with irrigation holes, with a mild steel frame and security clamps as standard. Standard finish is black, with other colours available on request: cast iron square grille for
Riviere Square Hole Tree Grille is a cast iron square tree grille designed to protect tree roots in urban environments, allowing water and air to reach the soil. Customisable with irrigation holes, with a mild steel frame and security clamps as standard. Standard finish is black, with other colours available on request.
Cast iron square grille for tree root protection in public spaces
Customisable with irrigation hole options
Supplied with mild steel frame and anti-theft security clamps
Standard black coating, other colours possible
Available in medium or heavy duty frame
Internal aperture diameter of 500mm for tree growth
Applications
Urban streetscapes
Pavements and pedestrian zones
Parks and landscaped public areas
Commercial developments
School grounds
Town centre regeneration projects
Dimensions
Grille size: 1200mm x 1200mm
Internal aperture diameter: 500mm
Weight: 144kg
Installation
Secured into a concrete base by bolting or sinking tangs into wet concrete, grille fixed to frame with anti-theft clamps
