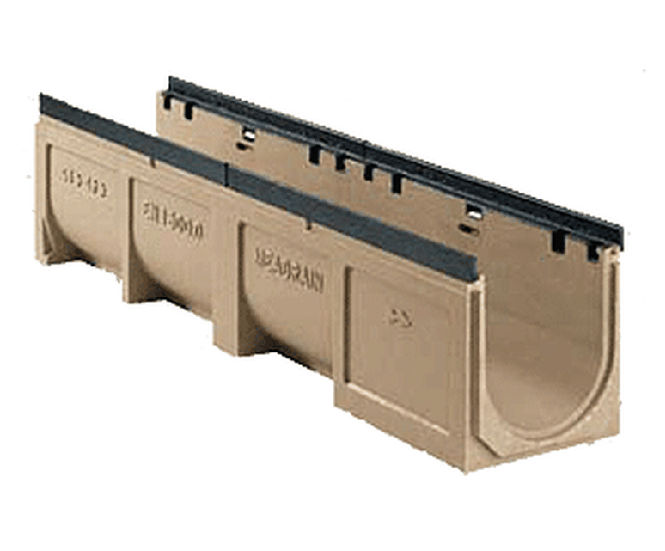

HD1500 polymer drainage channel
HD1500 is a 150mm polymer concrete drainage channel has a nominal width of 150mm for load class applications up to F900. The HD1500 has an integral cast iron edge rail for strength under extreme dynamic loading. The lightweight construction of polymer concrete reduces installation time and manpower required on site: channel sections for a linear
HD1500 is a 150mm polymer concrete drainage channel has a nominal width of 150mm for load class applications up to F900.
The HD1500 has an integral cast iron edge rail for strength under extreme dynamic loading. The lightweight construction of polymer concrete reduces installation time and manpower required on site.
Channel sections for a linear fall (base fall 0.5%) and no fall
Also with integral outlet connector
F900 150mm drainage channel for airports, ports and industrial areas
D400 150mm drainage channel for car parks, industrial and commercial units
Load classes
C250 Light commercial vehicles Road verges Side gutters
