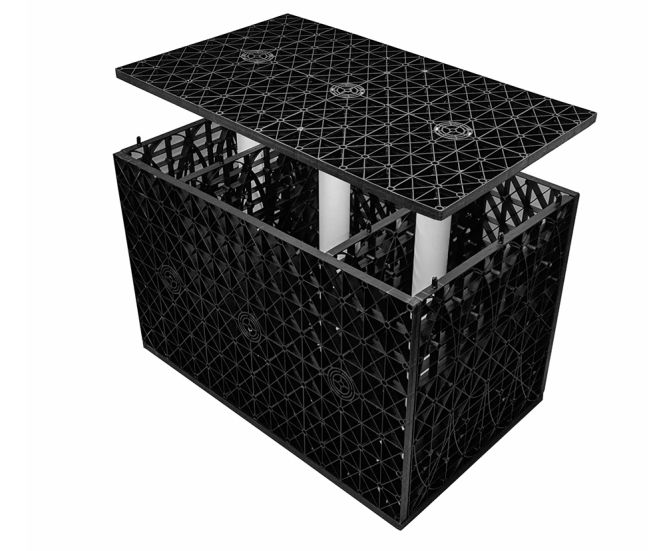

CORE Water Soakaway Crate with Filtration Membrane is a modular drainage unit designed for managing rainwater beneath gardens, pedestrian areas, and light vehicular traffic. Each crate holds just over 200 litres and is wrapped in a geotextile membrane to prevent soil and silt ingress.

  • Modular drainage crate for rainwater management in landscaping and construction

  • Supplied with geotextile filtration membrane to reduce silt and soil entry

  • Each unit holds 0.216 cubic metres (just over 200 litres) of water

  • Suitable for use under gardens, pedestrian areas, and light vehicle access

  • Easy to assemble and combine for larger soakaway systems

  • Recommended use: one crate per 10–12m² of drained area

Applications

  • Residential garden drainage

  • Commercial landscaping

  • Pedestrian walkways

  • Light vehicle access areas

  • Rainwater soakaway systems

Dimensions

Height 500mm

Width 800mm

Depth 500mm

Capacity 0.216m³ (just over 200 litres)

Installation

Not suitable for heavy clay soils

Multiple crate systems should not be installed under vehicular traffic areas
