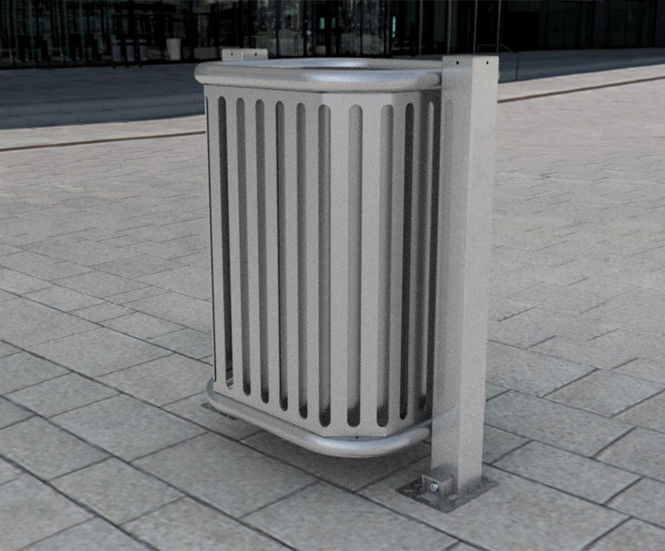

The AUTOPA HVM litter bin has been designed for installation where pedestrians and vehicles could share the same area, and has the ability to be removed if necessary to allow access.

Designed and tested to withstand vehicle impact and has achieved product rating
IWA 14-1:2013 Barrier V/1500[M1]/48/90:0.0.

Products

840mm wide litter bin

  • 1303mm Overall height

  • 1003mm Height above ground

  • 1706mm Subframe width

  • 1800mm Overall width

588mm wide litter bin

  • 1303mm Overall height

  • 1003mm Height above ground

  • 956mm Subframe width

  • 1050mm Overall width

Materials and finish

As standard

  • Removable galvanised steel litter bin

  • Galvanised steel modular sub-frame

Options

Colour-coating available as an optional extra (additional cost) and must be specified at the time of order.

What is IWA14-1:2013?

IWA14-1 is an International Workshop Agreement which specifies the essential impact performance requirement for a vehicle security barrier (VSB) and a test method for rating its performance when subjected to a single impact by a test vehicle.

How to decode the IWA14-1 product rating given
Example: IWA14-1:2013 Barrier V/1500[M1]/48/90:0.0

Breakdown

  1. IWA14-1:2013 = the standard to which the product was tested

  2. Barrier = type of VSB

  3. V = denotes a vehicle impact (IWA141-1 only allows for type V tests)

  4. 1500 = vehicle mass in kg

  5. M1 = vehicle classification - car

  6. 48 = impact speed in km/h

  7. 90 = impact angle

  8. 0.0 = vehicle penetration distance in metres

In the above example, the product rating shows that a barrier type VSB was impacted by a Vehicle (V) of an M1 Class (Car) with a mass of 1500kg. The vehicle was travelling at 48km/h and impacted the barrier at an angle of 90 degrees and penetrated 0.0m past the VSB datum point after impact.
