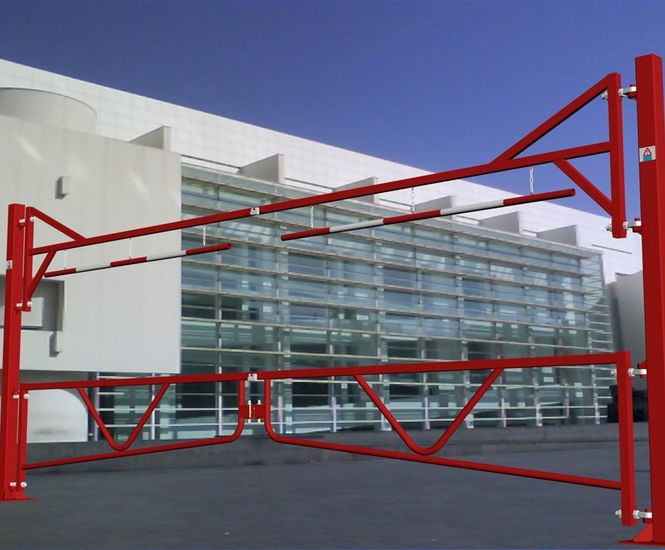

The AUTOPA double swing height restrictor with swing gate has a standard clearance of 2050mm (knocking bar), limiting access to high-sided vehicles. Ideal for use on commercial sites such as retail parks, it spans two carriageways, preventing vehicles from circumventing the access control measures in place. The booms of the swing gates can be opened (if required) to allow access for high-sided vehicles as and when required.

The boom of the restrictor and gate can be locked in closed and open positions (additional catch post required) using padlocks (available separately).

Specifications

  • Galvanised mild steel, coated red as standard

  • Main post: 90 x 90 x 3mm; 400 x 400 x 10mm base

  • Catch post: 90 x 50 x 3mm; 340 x 254 x 10mm base

  • 2050mm ±70mm standard clearance to knocking bar

  • Standard width: 6-12m

  • Available ragged for casting in or flanged for bolting down

  • 600mm below ground (ragged version)

  • Four 16mm bolts required for each leg (flanged version)

Optional extras

  • Knocking bars with white class 2 reflective tape

  • Swing boom lockable by padlock

  • Road warning signs

  • Swing gates available upon request (cannot be retrofitted to existing height restrictors)

  • Additional catch post for occasional access by high-sided vehicles (required if swing boom is to be locked in open position)

  • Other colours available upon request (state RAL numbers at time of order)

Range (code | length | fixing)

138 106 920: 6m - bolt down
138 106 920R: 6m - concrete in
138 106 921: 8m - bolt down
138 106 921R: 8m - concrete in
138 106 922: 10m - bolt down
138 106 922R: 10m - concrete in
138 106 923: 12m - bolt down
138 106 923R: 12m - concrete in
In 138 106 924: 14m - bolt down
138 106 924R: 14m - concrete in
