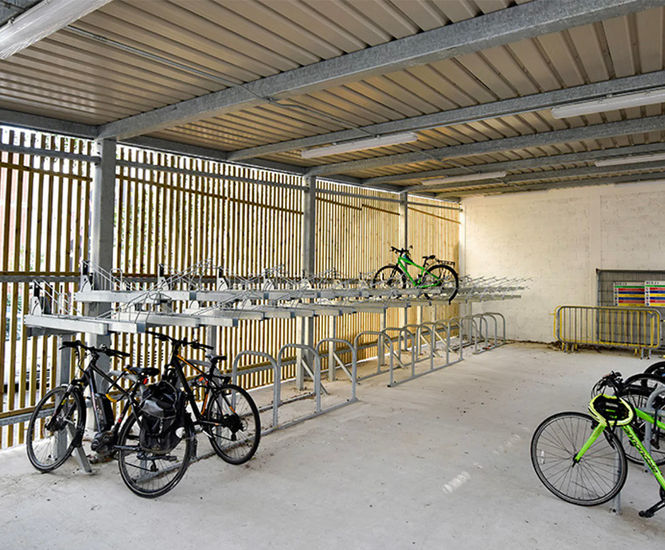

This two-tier cycle rack system is a cost-effective option for space-saving bike storage. It includes a gas strut mechanism as standard making operation of the upper level troughs exceptionally easy and more accessible.

Broxap recommends Sheffield racks on the lower level to keep the two-tier cycle parking accessible, whilst also keeping it quick and simple to clean.

Various sizes are available to suit the capacity required. Alternatively, bespoke versions for reduced height or length are available on request.

Key features

  • Each set of four "cycle spaces" consists of two upper-tier troughs and one lower-tier Sheffield hoop.

  • Sheffield racks can be easily swept clean.

  • Staggered upper level troughs allow for varying cycle handle bars to avoid clashing and enable easy operation.

  • Gas strut lift-assist mechanism for easy loading / unloading on upper tier.

  • Can contribute towards gaining ENE8 credits when used in the appropriate situation, under the Code for Sustainable Homes.

  • BREEAM and Code for Sustainable Homes Compliant.

  • Operating space: 3679mm

Options

  • Size options based on cycle capacity

  • Finish: framework, lower rack and upper trough / runners are galvanised only

Dimensions

Standard unit

  • Height: 1800mm

  • Length: 9100mm (4 Cycles)

Length with capacities

  • 1286mm (6 cycles)

  • 1660mm (8 cycles)

  • 1700mm (10 cycles)

  • 2075mm (12 cycles)

  • 2450mm (14 cycles)

  • 2825mm (16 cycles)

  • 3200mm (18 cycles)

  • 3575mm (20 cycles)

Minimum hight requirement is 2455mm
2 face to face units require 5559mm
