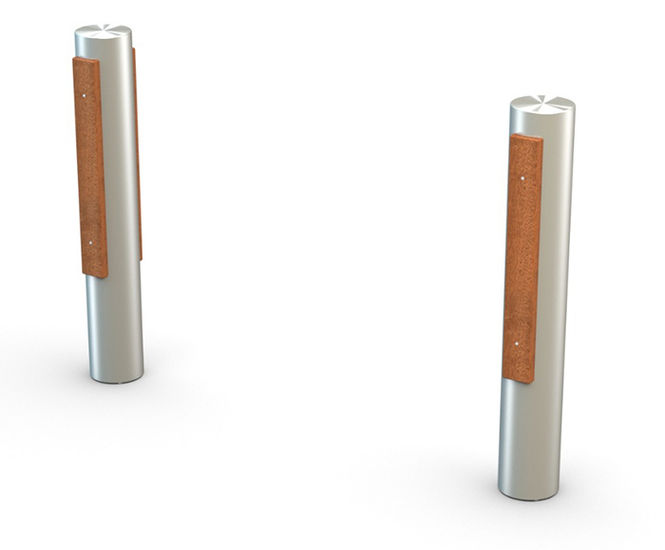

Protect is an impact-tested security bollard designed to withstand vehicle collisions to IWA 14-1 standards. Made from grade 304 or 316 stainless steel with a brushed finish, hardwood or softwood timber bumpers and a galvanised steel core, it is cast in concrete at a shallow depth. Flat or dome top options and powder-coated or galvanised steel versions are available.

  • Impact-tested security bollard for vehicle protection

  • Made from stainless steel with hardwood (sapele) or softwood (Siberian Larch) timber bumpers

  • Galvanised steel core for added strength

  • Shallow installation depth of 250mm

  • Flat or dome top options

  • Complies with IWA 14-1:2013 test rating

Applications

  • Public spaces

  • Commercial developments

  • Pedestrian zones

  • Car parks

  • Building perimeters

Dimensions

Above ground: 139 (dia) x 900mm (h)

Below ground: 1300 (w) x 1300 (l) x 250mm (h)

Performance

Single core IWA 14-1:2013 rating V/1500[M1]/48/90:2.2

Dual core IWA 14-1:2013 rating V/2500[N1G]/48/90:0.0

Materials

Bollard sleeve made from grade 304 or 316 stainless steel and hardwood (sapele) or softwood (Siberian Larch)

Protect core made from galvanised steel

Finish

Brushed stainless steel

Options and variations

Flat or dome top

Galvanised or powder-coated steel versions

Installation

Cast in concrete at 250mm depth

Accreditations

Complies with IWA 14-1:2013
