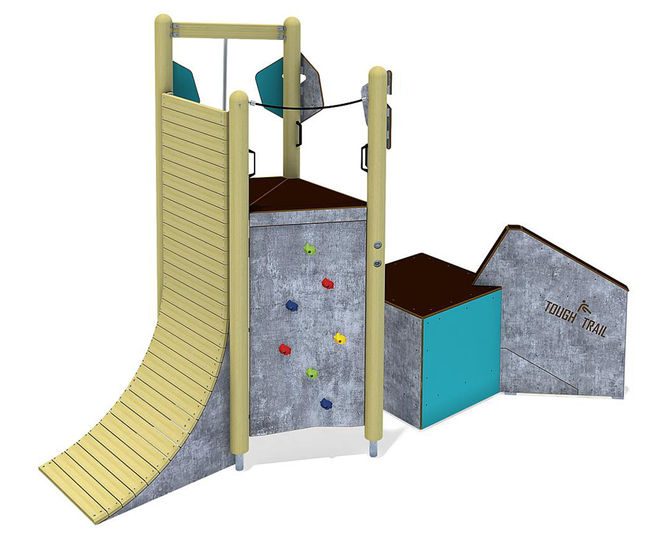

Base Climb play unit is a playground structure designed for physical activity and creative play, made from pressure-impregnated softwood, high-pressure laminate, and steel. Suitable for children aged 10 and above, it supports climbing, ramp use, and other movement-based activities, with a modern, open design for varied play styles.

  • Play unit for climbing, ramp activities, and creative movement

  • Made from pressure-impregnated softwood, high-pressure laminate, and steel

  • Open design encourages multiple ways to climb and descend

  • Includes climbing wall, ramp, pole, cube, and trapeze wall

  • Suitable for fitness playgrounds and active outdoor spaces

  • Certified for safety and impact protection

  • Supports group play and physical development

Technical specifications

Material

softwood pressure-impregnated

Minimal space

7,23x5,88x3,75 m

Fall protection netto

27,0 m²

Freefall height

195 cm

Biggest part

Ø 13,8x13,8x370 cm

Foundation level

ET 400/700

Foundation

12x CF or 5x CF + 7x PFs

Soil quality

at least sand

Catalogue index

tough trail Base Climb

Applications

  • Outdoor playgrounds

  • School fitness areas

  • Parks and recreation spaces

  • Community activity zones

  • Adventure and ninja-themed play areas

Dimensions

Minimum space 7.23 x 5.88 x 3.75 m

Freefall height 195 cm

Biggest part diameter 13.8 x 13.8 x 370 cm

Performance

Impact protection area 27.0 m²

Materials

Pressure-impregnated softwood

High-pressure laminate (HPL)

Hot-dip galvanised steel

Stainless steel (V2A)

Glass fibre reinforced plastic (GFRP)

Aluminium (coated)

Plastic-coated steel cable

Colours

Java Concrete

Installation

Requires 2 persons, estimated 10 hours

Foundations: 12x CF or 5x CF + 7x PFs

Ground: at least sand

Accreditations

Certificate: Z2_010651_0527_Rev00

Sustainability

CO2 emissions 1407 kg

42% renewable raw materials

14% recycled material
