Rigid inclusions for manufacturing research centre
Keller devised a foundations solution for a Nuclear Advanced Manufacturing Research Centre site which could not be treated by vibro. Using rigid inclusions avoided the need for piling, reducing the project's carbon impact. The construction of a 46,700 sq ft Nuclear Advanced Manufacturing Research Centre (NAMRC) facility within the Infinity Park
Keller devised a foundations solution for a Nuclear Advanced Manufacturing Research Centre site which could not be treated by vibro. Using rigid inclusions avoided the need for piling, reducing the project's carbon impact.
Project
The construction of a 46,700 sq ft Nuclear Advanced Manufacturing Research Centre (NAMRC) facility within the Infinity Park Enterprise Area, Derby.
Challenge
The main challenge was to provide a solution through the very low strength and highly compressible Lacustrine Deposits which could not be vibro treated and would otherwise have required piling with fully suspended construction.
Solution

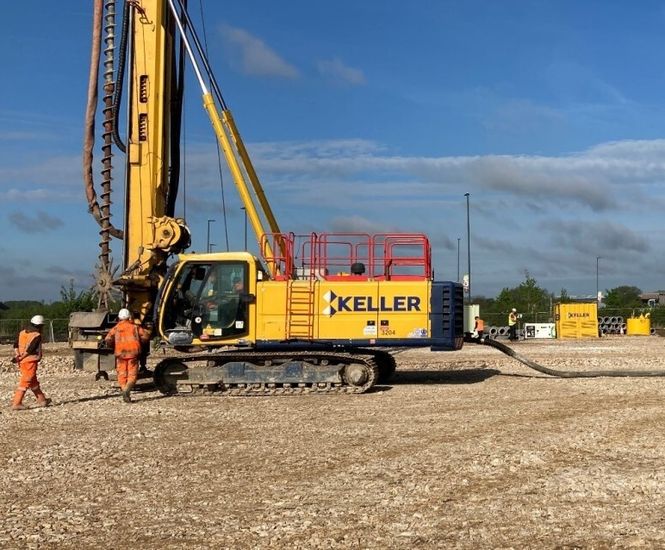

Rigid inclusions were installed for the foundations to achieve a bearing capacity of 200kN/m2 for the foundations and 55kN/m2 for the floor slabs. The columns were tested via short duration plate tests and mini zone tests which were undertaken during the course of the works.
Almost 1000 columns were successfully installed in three weeks with a total carbon impact of 125tCO2e.
As the RI columns were unreinforced this allowed the follow-on works to overlap to optimise timescales and accelerate the main contractor’s programme
