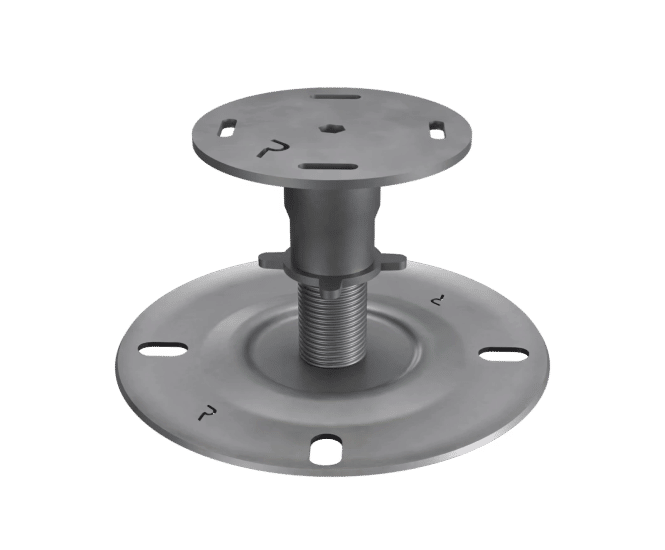

Preventa® metal pedestals provide the ideal support for the Raaft® Class A fire-rated modular terrace system.

Preventa® height-adjustable steel pedestals are designed for supporting Preventa® aluminium joists in the external terrace support structure system. Engineered to support pavers and decking, reducing material, construction and lifestyle costs.

Preventa® pedestals are made from zinc-coated steel and are available in 16 heights. The flat base diameter ensures an even load distribution. Each pedestal's height is easily adjustable to suit substrate conditions. An integral locking ring provides ultimate stability.

Preventa® steel pedestals are non-combustible and corrosion-resistant.

Suitability

  • Use with the entire Raaft® Fire-Rated Terrace System for a non-combustible fully modular terrace

  • Use with porcelain paving or fire-rated decking

Benefits

  • Excellent load-bearing capability

  • Height and slope-adjustable for almost any environment

  • BRooft(t4) rated - support structures made from fire- and corrosion-resistant steel

  • Modular and fully customisable - can be configured to meet requirements

  • No fixtures required - each component comes together seamlessly for quick installation

  • Range of adjustable heights from 5-365mm

  • Strong but lightweight

  • Made from a corrosion-resistant steel

  • Robust structure - strong enough for terraces

  • Manufactured using durable, sustainable materials with no compromise on quality

Range

SKU 345001
Min height range: 5mm
Weight per pedestal: 0.38kg
Weight capacity: 12kN
Carbon embodiment: 1.09

SKU 345002
Min height range: 10mm
Weight per pedestal: 0.46kg
Weight capacity: 12kN
Carbon embodiment: 1.18

SKU 345003
Min height range: 15mm
Max height range: 25mm
Weight per pedestal: 0.5kg
Weight capacity: 12kN
Carbon embodiment: 1.22

SKU 345010
Min height range: 25mm
Max height range: 35mm
Weight per pedestal: 0.56kg
Weight capacity: 12kN
Carbon embodiment: 1.33

SKU 345011
Min height range: 35mm
Max height range: 55mm
Weight per pedestal: 0.58kg
Weight capacity: 12kN
Carbon embodiment: 1.36

SKU 345012
Min height range: 55mm
Max height range: 85mm
Weight per pedestal: 0.64kg
Weight capacity: 12kN
Carbon embodiment: 1.55

SKU 345013
Min height range: 85mm
Max height range: 145mm
Weight per pedestal: 0.71kg
Weight capacity: 12kN
Carbon embodiment: 1.36

SKU 345014
Min height range: 145mm
Max height range: 255mm
Weight per pedestal: 0.88kg
Weight capacity: 12kN
Carbon embodiment: 1.55

SKU 345015
Min height range: 255mm
Max height range: 365mm
Weight per pedestal: 1.06kg
Weight capacity: 12kN
Carbon embodiment: 1.55
