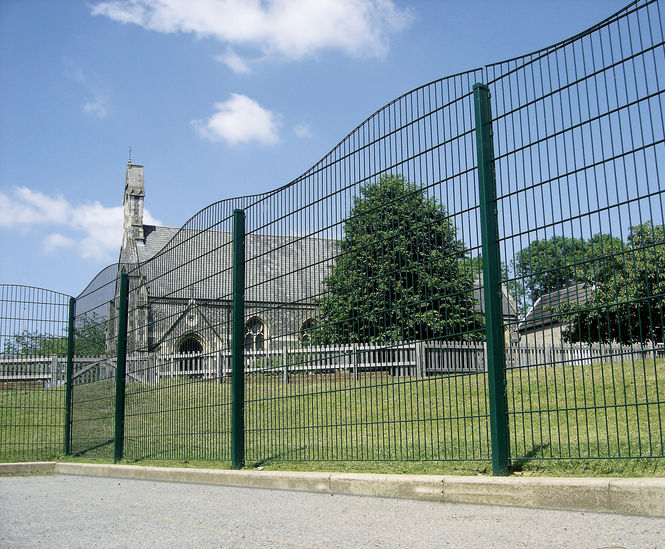

Gemini Surf is a decorative mesh fencing system made from twin horizontal wires and single vertical wires, designed for high visibility and strength with a distinctive curved profile. Suitable for visually sensitive or public-facing areas, it combines security with an attractive appearance.

  • Decorative mesh fencing system with curved styling

  • High visibility and rigidity from twin-wire mesh construction

  • Anti-tamper security fixings and full-length clamp bars for secure installation

  • Soft, ornate design without exposed sharp edges

  • Suitable for bolt down, in-ground, or wall-mounted installation

  • Optional decorative post finials and extended posts for accessories

  • Pedestrian and vehicle gates available to match fencing

Applications

  • Housing projects

  • Schools and education sites

  • Public and prestigious developments

  • Zoos and wildlife parks

  • Utilities and emergency services

  • Transport and industrial sites

Dimensions

Height: 1230, 1830, 2030, 2430mm (Other heights are available upon request)

Panel width: 2510mm

Mesh size: 200 x 50mm

Performance

Useful life expectancy: at least 15–20 years in UK C1 environment (ISO 12944 p2)

Materials

  • Twin horizontal wires and single vertical wires

  • Posts are 50mm x 50mm RHS

Colours

Range of standard RAL colours

Finish

Protective zinc layer and polyester powder coating to BS1722 p16

Options and variations

  • Convex, concave, and surf panel styles

  • Posts in various lengths

  • Decorative post finials, extended posts for CCTV or lighting

Installation

  • Post and clip system for simple installation

  • Suitable for power or hand tools

  • Available bolt down, in-ground, or on wall fixing

Maintenance

  • Regular washing extends lifespan

  • Repair coating damage promptly
