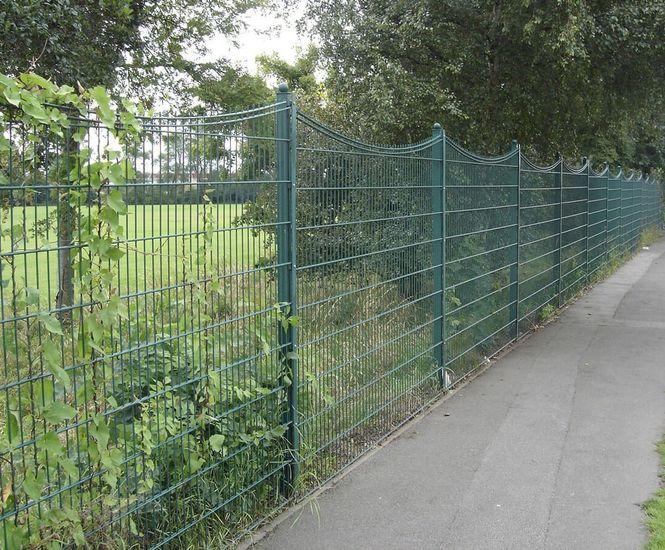

Gemini Concave architectural fencing from Zaun is a twin-wire mesh fence system with a distinctive concave curve at the top, designed to create a soft, decorative boundary. Part of the Gemini range, it is made from twin horizontal and single vertical wires, with anti-tamper fixings and full-length clamp bars for security and safety. Suitable for settings where visual appeal and strength are important.

  • Decorative mesh fence system with a concave curved top

  • High visibility and rigidity from twin-wire construction

  • Reduces harsh lines for a softer, more attractive boundary

  • Anti-tamper security fixings and full-length clamp bars

  • Supplied with protective zinc and polyester powder coating

  • Compatible with matching gates and decorative post options

  • Post heights and panel shapes tailored to site requirements

Applications

  • Housing developments

  • Schools and education sites

  • Public and prestigious projects

  • Zoos and wildlife parks

  • Transport infrastructure

  • Utilities and industrial sites

  • Emergency services facilities

Dimensions

  • Heights: 1230, 18320, 2030, 2430mm (other heights available)

  • Panel width: 2510mm

  • Mesh size: 200 x 50mm

Performance

  • Useful life expectancy 15–20 years in UK C1 environment (ISO 12944 p2)

Materials

Twin horizontal steel wires and single vertical steel wires

Colours

Range of standard RAL colours

Finish

Protective zinc layer and polyester powder coating to BS1722 p16

Options and variations

  • Concave, convex, and surf panel shapes

  • Decorative post finials and extended posts for CCTV or lighting

Installation

  • Post and clip system with vandal-proof security fixings

  • Wall fixing, cranked or base plated

  • Installed using power or hand tools

Maintenance

Regular washing extends useful life; repair any coating damage promptly
