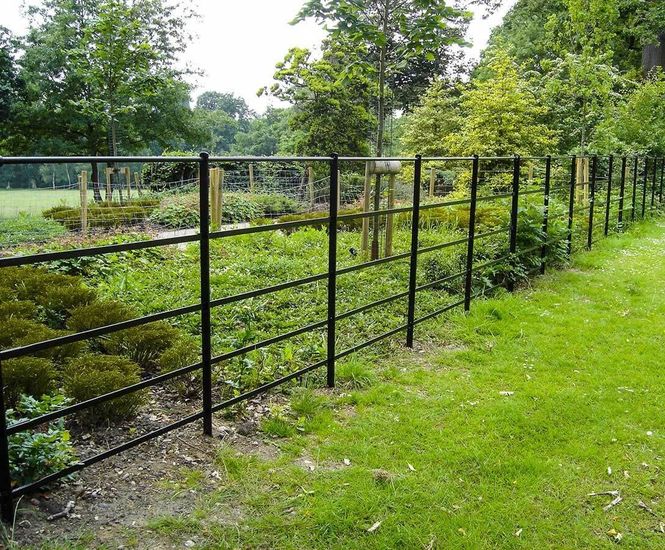

Zaun’s traditional estate railings, designed and manufactured in its factory in Wolverhampton, provide permanent fencing for large estates, agricultural farmland and housing estates.

They are fabricated with round bar rails as standard to provide greater strength, robustness and rigidity.

Estate railings are supplied in 2m-wide bays with posts on each end and a support post in the centre of the bay.

Estate fencing bays are connected on both sides using security self-tapping bolts, with each post sitting flush next to the other.

Matching swing gates can also be supplied to complete the perimeter.

  • Traditional estate railings with round bar rails
  • 2000mm wide bays with central support post
  • 1200mm high as standard, other heights on request
  • Manufactured to BS 1722 Pt.9
  • Hot dip galvanised and polyester powder-coated
  • Matching swing gates
  • Available from stock

Specifications

  • Fence height: 1200mm
  • Panel width: 2000mm
  • Horizontal bar: diameter 20mm CHS
  • Bar centres: 235mm
  • Post size: 50 x 25mm
  • Fixing centres: 235mm
  • Fixings: security self-tapping bolt

Finishes

All Zaun posts / panels / gates and painted auxiliary components (for example, clamp-bars, slide bolts etc) benefit from a protective zinc layer and electrostatically-applied polyester powder coating to BS1722 p16. Care is taken with pre-treatment to ensure sound adhesion between the zinc and paint layers. In a UK C1 environment, as defined in ISO 12944 p2, this should ensure a useful life expectancy of the fence of at least 15-20 years. Life expectancy in all environments can be extended by maintaining the fencing with regular washing. Useful life will be reduced if the fencing is damaged. Any coating damage should be repaired to reduce the effect on useful life.

Enhanced painting systems such as marine coatings are also available for improved life expectancy in C2-C5M environments.
