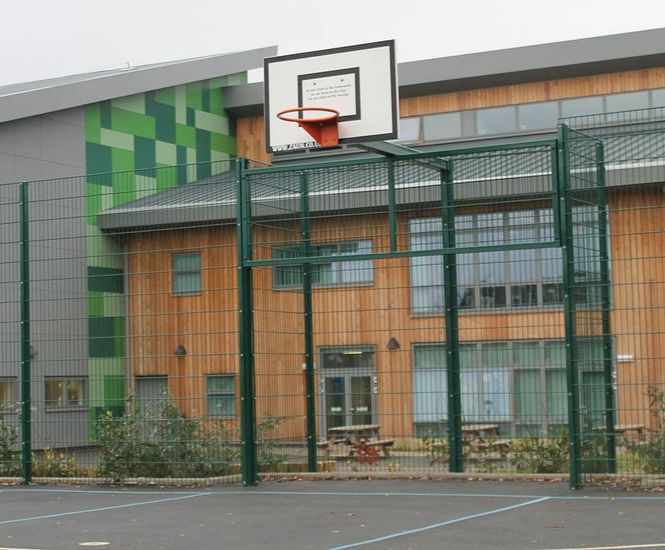

Recessed MUGA Goal End is a goal unit made from double wire mesh, integrated into the fence line for multi-use games areas. Designed for football and basketball, it suits a range of settings from urban sports courts to junior schools, with mesh and size options to match project needs.

  • Goal unit integrated into perimeter fencing for multi-sport use

  • Mesh options include Duo Sports and Super Rebound systems for performance

  • Noise-reducing EPDM inserts reduce rattle by around 29%

  • Basketball unit can be mounted directly on the fence or on a steel arm

  • Posts and panels have a protective zinc layer and polyester powder coating for durability

  • Supplied with vandal-resistant security fixings

  • Post and panel heights up to 4.5m, with recess depth to suit storage or play requirements

Applications

  • Multi-use games areas (MUGAs)

  • School sports courts

  • Urban sports facilities

  • Community recreation grounds

  • Football and basketball courts

Dimensions

  • Panel heights: up to 4.5m

  • Width: bespoke

  • Mesh pattern: 50mm x 200mm (Duo Sports)

  • Mesh pattern: 50mm x 66.6mm Super Rebound)

Performance

  • Noise reduction by approximately 29% with EPDM inserts

  • Useful life expectancy of at least 15–20 years in UK C1 environment

Materials

Steel double wire mesh

Colours

Range of RAL colours available

Finish

Protective zinc layer and electrostatically applied polyester powder coating to BS1722 p16

Options and variations

  • Mesh types: Duo 6 Sports, Duo 8 Sports, Super Rebound 6, Super Rebound 8

  • Basketball unit on fence or steel arm

  • Extended posts for netting or lighting

Installation

  • Post, EPDM rubber inserts, and clamp bar configuration

  • Wall fixing, cranked, base plated post installation

  • Installed with power or hand tools

Maintenance

  • Regular washing extends lifespan

  • Repair coating damage promptly
