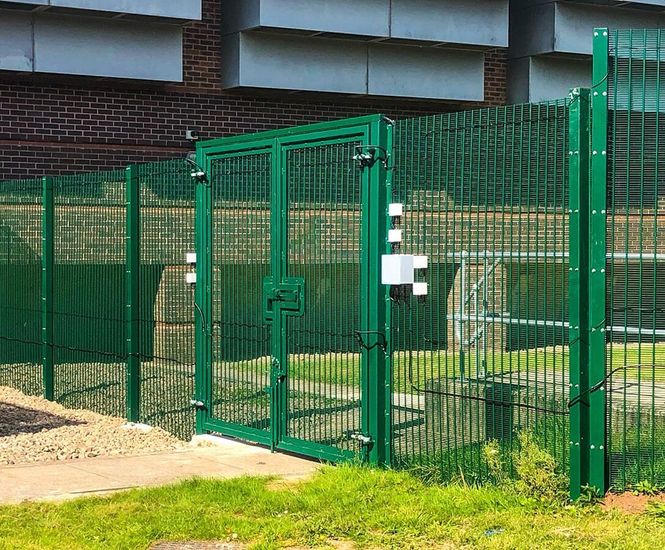

Zaun SR2 (B3) Rated Vehicle Gates are security gates made for vehicle or pedestrian access, tested and approved to LPS 1175 SR2 (Issue 7) and B3 (Issue 8) by the Loss Prevention Certification Board. Gates use HiSec SR2 welded mesh infills on a steel frame, include a clamp bar, slide latch locking system with added sheath, and are supplied with an SR-rated padlock. Gates above 1.8m have three safety points to prevent failure and comply with BS 1722 Part 14: 2017. Swing gates can be automated and supplied in a range of widths and RAL colours.

  • Security gate range for vehicle or pedestrian access, tested to LPS 1175 SR2/B3

  • HiSec SR2 welded mesh infills on steel 50mm x 50mm SHS frame

  • Clamp bar and through bolts with stainless steel fixings for added security

  • Slide latch locking system with additional sheath and SR-rated padlock

  • Three safety points on gates above 1.8m to prevent gate failure

  • Complies with BS 1722 Part 14: 2017 for vehicle swing gates

  • Supplied in a choice of RAL colours with polyester powder coating

  • Can be automated and supplied with a range of topping options

Applications

  • Perimeter security for commercial and industrial sites

  • Vehicle access control points

  • Pedestrian access in secure environments

  • Critical infrastructure protection

  • Public sector and government facilities

  • Sites requiring resistance to physical attack, burglary, or vandalism

Dimensions

  • Standard vehicle gate width 3.0m

  • Gates above 1.8m supplied with three safety points

Performance

  • Tested and approved to LPS 1175 SR2 (Issue 7) and B3 (Issue 8)

  • Complies with BS 1722 Part 14: 2017

  • Life expectancy of at least 15–20 years in UK C1 environment (ISO 12944 p2)

Materials

  • Steel 50mm x 50mm SHS frame

  • HiSec SR2 welded mesh infills

  • Stainless steel fixings

Colours

Supplied in RAL colour of choice

Finish

Zinc layer and electrostatically applied polyester powder coating to BS1722 p16

Options and variations

  • Single or double leaf options

  • Range of widths

  • Range of topping options

  • Automation options

  • Additional mesh over panel

Installation

  • Supplied with through bolts and stainless steel fixings

  • Three hinges and/or gate arrestor cables on gates above 1.8m

Accreditations

  • LPS 1175 SR2 (Issue 7) and B3 (Issue 8) by LPCB

  • Complies with BS 1722 Part 14: 2017

Maintenance

  • Regular washing extends useful life

  • Repair any coating damage to maintain durability
