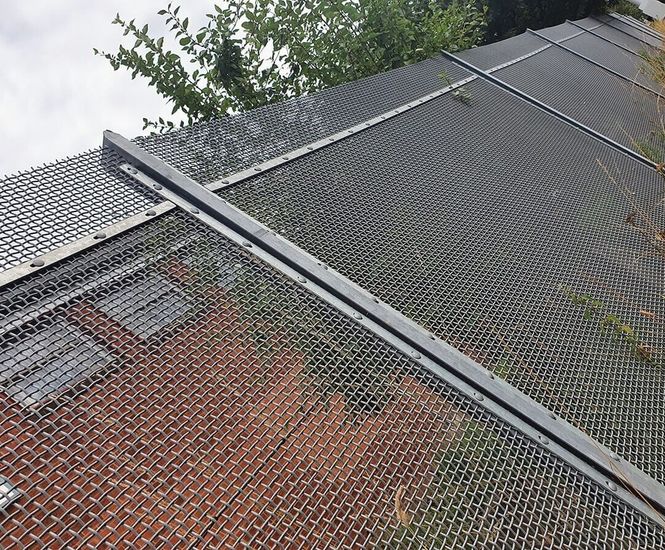

The ArmaSade retrofit palisade fencing system is designed to upgrade existing steel palisade fences by replacing pales with high-security ArmaWeave woven mesh panels.

Made in the UK, this system uses existing palisade posts and framework, requires minimal groundwork, and allows for quick installation with enhanced security and improved visibility for CCTV.

Features and benefits

  • Simple installation over existing palisade posts and rails

  • No groundwork or additional concrete needed

  • Panels can be raked to match site gradients

  • Minimal site disruption, installed bay by bay

  • Improved security and visibility for surveillance

  • Eco-friendly, reusing existing posts and foundations

  • Compatible with a range of security toppings

Applications

  • Rail infrastructure

  • Utilities

  • Nuclear facilities

  • Data centres

  • Industrial sites

  • Sites with restricted access or budgets

Physical attributes

  • Panel heights: 1800-3000mm

  • Panel width: 2700mm

  • Mesh size 17 x 17mm

  • Wire diameter: 4mm

  • Panel weight 12kg per m2

  • Post centres: 2750mm

  • Clamp bar size: 40 x 5mm

  • Minimal top edge projection

Materials

High-security woven steel mesh (ArmaWeave) and steel palisade posts.

Installation

  • Uses existing palisade posts and bolt holes

  • Only requires drilling six holes per post for vertical clamping members

  • Supplied with bolts, nuts and washers

  • Installed using hand or power tools

  • No need for new foundations or concrete
