Biobrane W70 SiltPocket - wool silt trap for erosion and sediment control

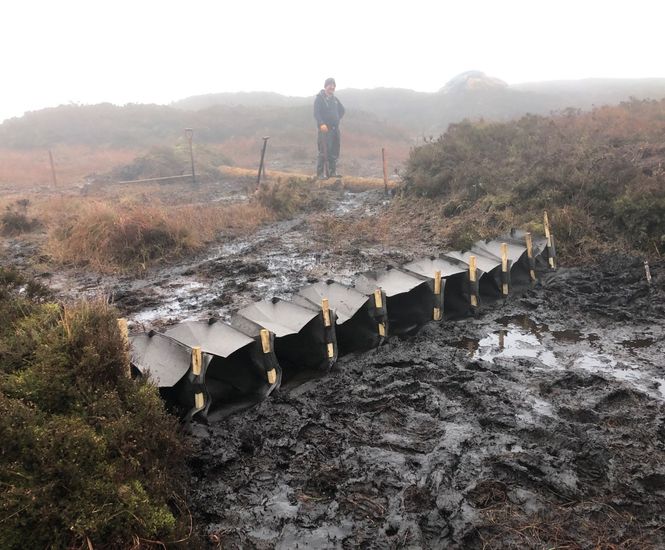

Biobrane™ SiltPocket™ is a lightweight, portable, compact and adaptable solution for gully erosion reinstatement, and the formation of check dams, no-dig silt fences and silt traps. They are designed to detain and filter passing water, trap eroded material, reduce water velocity and encourage settlement of silt
Biobrane™ W70 SiltPocket™ is a lightweight, portable mat with interlocking pockets, made from 70% recycled wool and 30% PLA, designed to trap silt and filter water for erosion control, gully reinstatement, check dams, and silt fences. Fully compostable and biodegradable, with 81 micron pore size and 500 g/m² weight.
Lightweight, portable, no dig fence and trap for silt and erosion control
100% bio-based, fully compostable and biodegradable
Traps sediment material and filters passing water
Reduces water velocity to limit erosion
Encourages settlement of silt
81 micron pore size for effective filtration
Low carbon footprint with recycled wool content
Applications
Gully erosion reinstatement
Check dams
No-dig silt fences
Silt traps
Restoring eroded wetland margins
Processing pumped dirty water
Dimensions
Expanded pocket size 900mm long x 300mm high
Weight 500 g/m²
Units per metre 3.12
Silt entrapment capacity (30º slope) 220 kg/m
Materials
70% recycled wool, 30% PLA bio-polymer
Performance
Permeability 78 litres/m²/sec
Pore size 81 micron [EN ISO 12956]
Strength 3.5 kN/m [EN ISO 10319]
Break elongation >50% [EN ISO 10319]
Sustainability
100% bio-based, fully compostable and biodegradable
