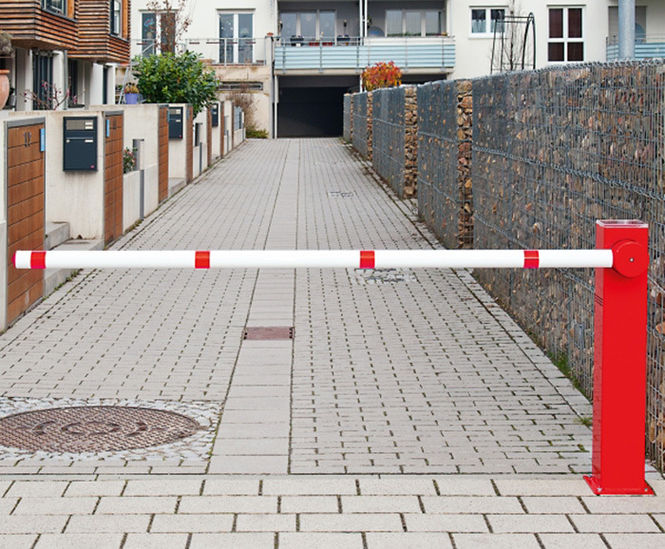

Solar Powered Electronic Raising Barrier is a preassembled access barrier for small to medium entrances, powered by solar energy and an internal battery, with a manual override and remote control. Made from aluminium with a highly visible boom arm and red reflective strips. No external power supply needed.

  • Access barrier for car parks, private estates, and building entrances

  • Solar and battery powered operation

  • Manual override for emergencies

  • Remote control with 12m range

  • Highly visible boom arm with reflective strips

  • Simple bolt-down installation

  • All aluminium construction

Applications

  • Private estate entrances

  • Car parks

  • Building entrances

Dimensions

Pivot post: 150 x 150 x 1,000mm

Base plate: 200 x 200 x 5mm

Boom arm diameter: 60mm

Boom arm max length: 2,500mm

Max drive through: 2,650mm

Materials

Aluminium

Options and variations

Boom arm length: 1,650 mm or 2,150 mm

Performance

Battery: up to 2,500 cycles per day

Solar module: additional 50 cycles per day

Remote control: 12m range

Installation

Preassembled unit, bolt down in position, fit boom arm to pivot post
