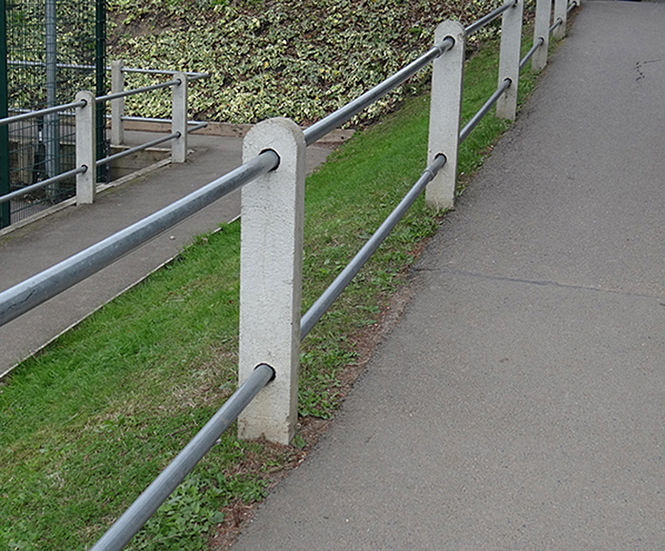

Concrete post and rail systems from Street Furnishing are designed to provide demarcation and security to pedestrian areas and cycle lanes by restricting vehicular access and deterring ramraiders. Suitable for use in urban and rural situations, the concrete bollards are durable, easy to install and low maintenance.

The concrete posts have precast holes to hold one or two tubular steel rails. As well as security and demarcation, this style of post and rail fencing can also provide handrails on slopes or stairs.

Dimensions

  • Tube diameter: 60mm
  • Bollard height: 1050/1600mm
  • Bollard width: 150mm
  • Bollard depth: 100mm

Installation

The bollards can be root fixed and concreted into the ground to a depth of 300mm (increased by the paving thickness in paved areas).
