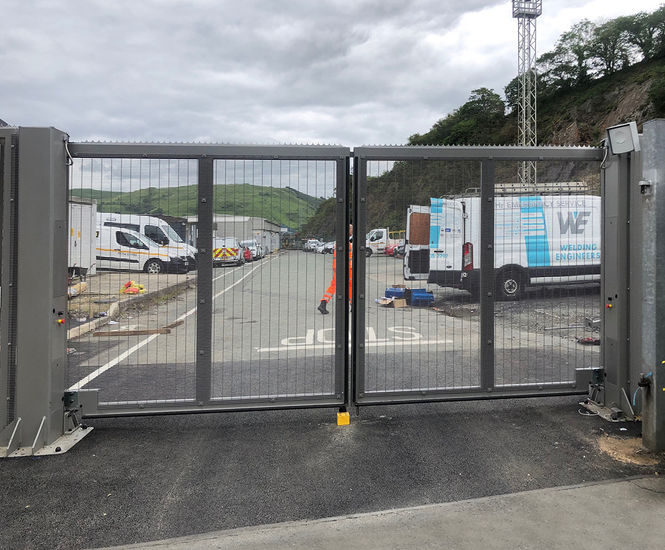

SwingGuard is a robust, reliable automatic swing gate designed with intelligent and compliant automation to ensure it can serve effortlessly for many years. Purpose built, SwingGuard has a higher degree of control, and typically operating faster than swing gates fitted with electro or hydraulic actuators.

SwingGuard can be infilled with any Barkers infill and additional security features to seamlessly match the fence line. Rated for 100% duty cycle, SwingGuard provides smooth movement and continuous operation in the most demanding environments.

Compliant with current safety legislation BS/EN 12453, SwingGuard is fitted dual height photocells and category 3 safety edges to detect any obstacles.

Specifications

Material

Max Span

Max Dimensions

Power Requirement

Tower: Steel
Leaf: Aluminium

Single leaf up to 4m
Double leaf up to 8m

3.0m high @ 6.0m wide
2.4m high @ 8.0m wide

Single Phase 240v
50Hz 10 Amps

Key features

  • 100% duty cycle for demanding environments

  • Complies to the latest safety standard BS EN 12453

  • Pre-assembled for smooth installation

  • Easy to use for end users

  • Low maintenance

  • Compatible with 99.9% of access control systems

  • Programmable control panel c/w fault diagnostic on screen display and error log

  • In the event of a power cut, the manual release mechanism requires no tools

  • Designed and built to last using high specification components

Optional extras

  • Anti-climb spikes

  • Traffic lights

  • Warning siren

  • Extensions for razor wire

  • Electric fence
