StronGuard™ Beam is a heavy-duty security fencing that combines an impact-tested beam with any of the Barkers StronGuard™ palisade security fencing range or SecureGuard SL2 mesh security fencing.

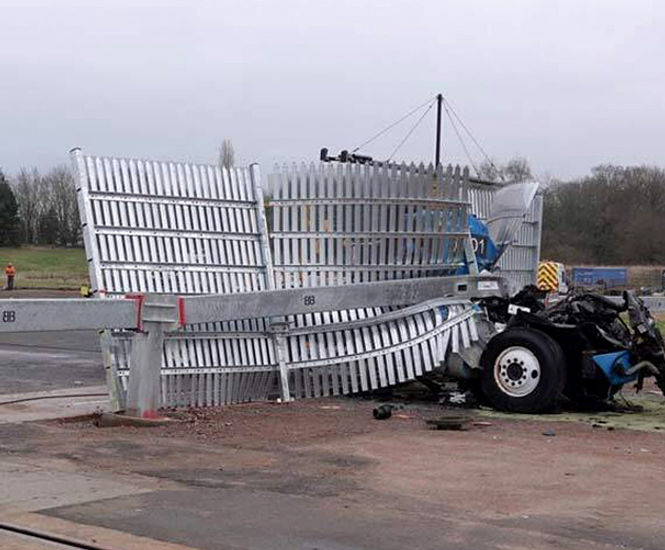

This combination of products offers hostile vehicle mitigation of a 7200kg vehicle travelling at 80kph (50mph) whilst providing physical protection against a forced entry with one of the many accredited systems available from Barkers.

Designed to meet operational requirements by offering one combined fence line, the system offers the client a smaller footprint which is ideal for applications where there are restrictions with available space.

Applications

StronGuard™ Beam is recommended for use on petrochemical installations, military sites, hazardous waste storage, test laboratories and data centres where space is at a premium, but maximum high security fencing is required.

Compatible fence systems

  • SecureGuard™ SL2 – LPS1175 SR2 tested fencing systems

  • StronGuard™ SR2 – LPS 1175 SR2 palisade security fencing

  • StronGuard™ SR3 – LPS 1175 SR2 palisade security fencing

  • StronGuard™ – CPNI base and enhanced palisade security fencing

  • StronGuard™ MA – ASTM M10 A5

Accreditation

  • IWA 14 rating: V/7,200[N2B]/80/90:1.5

  • ASTM F2656/F2656M: 18a M50/P2

Key features

  • Impact-accredited beam for hostile vehicle mitigation

  • Forced entry attack tested

  • Ideal for applications where space is a premium

  • Detail design information and specification on application

  • CPNI, LPCB and ASTM accredited fence systems available

Options

  • Barbed wire

  • Razor wire

  • Electrified fence

  • PIDs systems

Specifications

Beam Height (mm)

Fence Height (m)

Anchorage (m)

1,233

2.4 or 3.0

25
