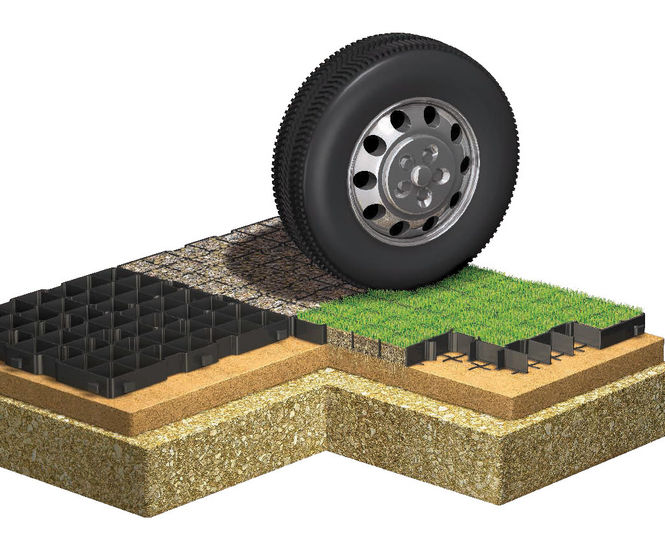

Rite Pave is a porous substrate support system for soil, grass or gravel infills. It is suitable for permanent or temporary traffic and car parking areas, residential driveways, pathways, hard standing areas or any area of ground subject to pedestrian, animal or vehicular traffic with a load bearing capacity up to 350 tonnes/m2.

Rite Pave stops the area from becoming rutted, boggy and slippery, which can be dangerous and unsightly. The ground appearance can also be enhanced by using decorative stone infills or planting medium for grass or sedum.

Traditional systems of using concrete, tarmac or block paving are not environmentally friendly and contribute to the growing problem of urban hot spots and carry the necessity for the implementation of extra drainage systems. Rite Pave is a porous substrate which retains water for gradual release to the drainage systems and will also absorb heat and reduce the hot spots. This permeable course will significantly reduce heat reflection and help the Sustainable Urban Drainage Systems (SUDS).

Rite Pave is environmentally friendly, being manufactured from 100% recycled HDPE which stops valuable resources ending in land-fill sites. It is also designed to easily join together to form a structure that can handle thermal expansion within itself. The product can be easily cut and laid by DIY enthusiasts and professionals alike as no specialist tools are required, it has excellent laying rates of up to 120m2 per man hour.

Typical applications

  • Erosion protection
  • Slope and embankment stabilisation
  • Access roads and residential driveways
  • Permanent and temporary car parks
  • Caravan parks
  • Pedestrian areas and garden paths
  • Garden shed bases
  • Helipads

Key benefits

  • Cost-effective solution to traditional surfacing methods such as concrete, tarmac or block paving
  • High load-bearing capacity up to 350 tonnes/m2
  • Suitable for a wide range of applications
  • Can be used with a variety of infill materials such as gravel, stones, grass, bark chippings sand and rubber crumb.
  • Prevents compaction of earth or gravel infill which assists better drainage
  • Stops dangerous or unsightly conditions occurring.
  • Fully supports grass growth
  • Ability to withstand thermal expansion
  • Environmentally friendly manufactured from 100% recycled materials.
  • Suitable for use as a slope stabilisation project.
  • Joins easily together and can be laid by DIY enthusiasts and professionals alike as no special tools are required
  • Excellent laying rates of up to 100m2 per man hour

Materials

Rite Pave is manufactured from 100% recycled high-density polyethylene (HDPE).

Colours

Rite Pave for grass: green
Rite Pave for gravel: black

Specifications

  • Module size: 50 x 50cm +/-3.5%
  • Minimum wall thickness: 3.2mm
  • Module depth: 4cm
  • Cell size: nominal 7cm square
  • Cells per m2: 196
  • Modules per m2: 4
  • Weight per module: 1.4kg
  • Available area for infill: 90%
  • Load-bearing capacity: 350 tonnes/m2
  • Axle weight: 20 tonnes
