Terra Lunar 180 Bridge Bollard Beam is a static bollard and beam system for hostile vehicle mitigation (HVM) on bridges and urban pathways, designed for ultra-shallow installation where foundation depth is limited. Tested to IWA 14, it stops a 7.2t vehicle at 30mph and allows for bridge movement and authorised access without dismantling.

  • Static bollard and beam system for HVM on bridges and urban areas with limited foundation depth

  • Ultra-shallow foundation of 80mm suits bridge kerbs and areas with restricted substructure

  • Beam swings open and closed for authorised access without removal

  • Accommodates up to 150mm lateral bridge movement and expansion

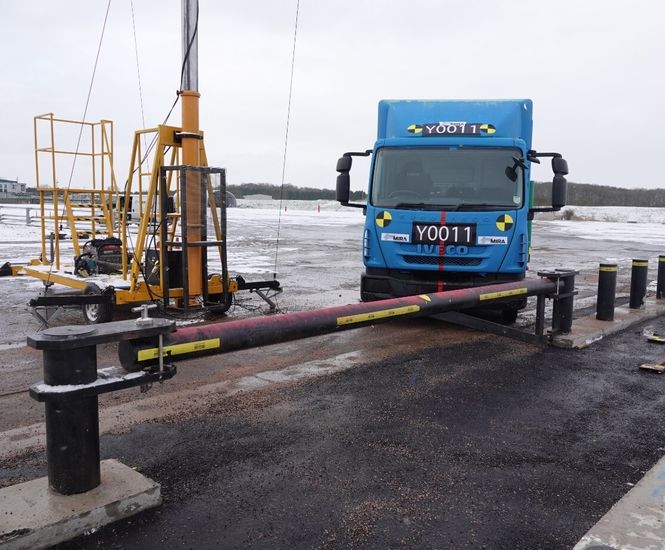

  • Impact tested to IWA 14, stopping 7.2t at 30mph at a 30° angle

  • Minimal damage on impact; beam can be replaced in 15 minutes

  • Designed to blend with urban and heritage environments

Applications

  • Bridge protection against vehicle attacks

  • Urban pathways and pavements with limited foundation depth

  • Cycle lanes and linear walkways

  • Areas with bridge expansion joints or obstacles to deep foundations

  • Inner-city security installations

Dimensions

Maximum beam length: 5200mm

Tested height above concrete plinth: 840mm

Foundation depth: 80mm

Performance

IWA 14-1 classification V/7200[N2A]/48/30:0.6

Stops 7.2t vehicle at 30mph at 30° angle

Allows up to 150mm lateral movement

Installation

Ultra-shallow foundation of 80mm

Fits within bridge kerb structure

Beam can be replaced within 15 minutes

Finish

Polyester powder coated as standard

Accreditations

IWA 14 tested
