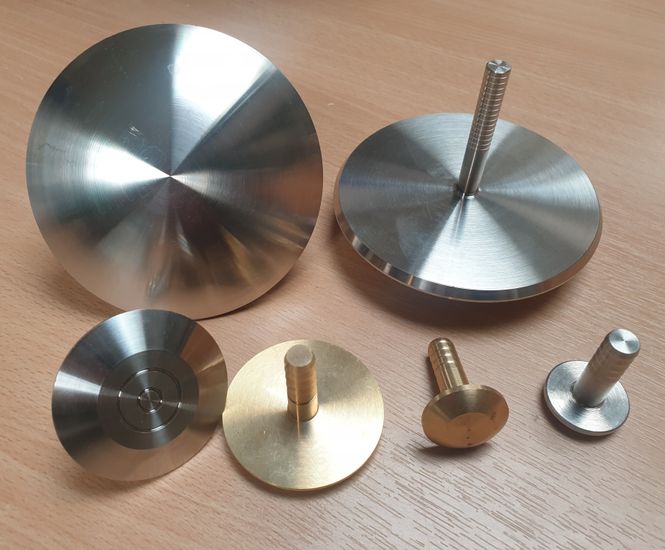

Stainless steel demarcation studs are used to delineate walkways, parking bays and paved cafés, amongst other applications.

Specification

  • 100mm diameter

  • 19mm-high overall

  • 15mm-high domed head stud

  • 55mm-long x 8mm-diameter shank

Installation

  • Drill a hole of 9-11mm diameter to a depth of 55mm then clear the dust away from the interior of the hole and surface to be covered by the head of the marker.

  • Apply a small quantity of 2-pack epoxy adhesive into the hole and surface area surrounding it.

  • Press the stud firmly into the hole until flush with the surface.

  • Remove any excess adhesive.
