Product name ROUTE Illuiminated paving
Suitability Bridges
Car parks
Cycle routes
Footpaths
Pedestrian areas
Roads
Material Resin bonded (scattered)
Characteristics Anti-slip
Finishes Coloured

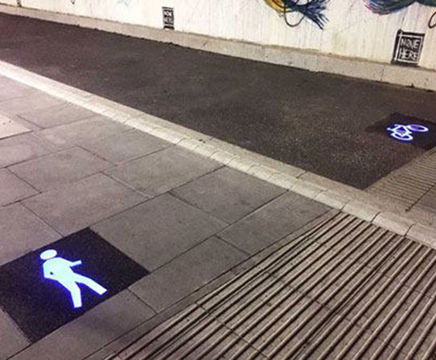

ROUTE illuminated paving provides clear and visible route or emergency marking using pictograms and text.

ROUTE paviours incorporate high output route or white LEDs into a sealed, waterproof tile. Constructed from a stainless steel enclosure with acrylic signs set into slip-resistant resin-bonded aggregate they can withstand the load of a vehicle.

All sign elements are made from laser-cut acrylic enabling almost any pictogram image or text to be produced.

Specification

  • Paviours are waterproof, sealed to IP67
  • Sizes up to 60x60cm
  • 24v DC remote driver
  • Typical power: 30x30cm - 9 watts; 60x60cm - 18 watts

Mounting depth

  • Pedestrian, cycle and light traffic: 38cm
  • Heavier duty version: 70mm
  • Aggregate: 1-3mm, resin-bonded


ROUTE illuminated paving provides clear and visible route or emergency marking using pictograms and text.

ROUTE paviours incorporate high output route or white LEDs into a sealed, waterproof tile. Constructed from a stainless steel enclosure with acrylic signs set into slip-resistant resin-bonded aggregate they can withstand the load of a vehicle.

All sign elements are made from laser-cut acrylic enabling almost any pictogram image or text to be produced.

Specification

  • Paviours are waterproof, sealed to IP67
  • Sizes up to 60x60cm
  • 24v DC remote driver
  • Typical power: 30x30cm - 9 watts; 60x60cm - 18 watts

Mounting depth

  • Pedestrian, cycle and light traffic: 38cm
  • Heavier duty version: 70mm
  • Aggregate: 1-3mm, resin-bonded
