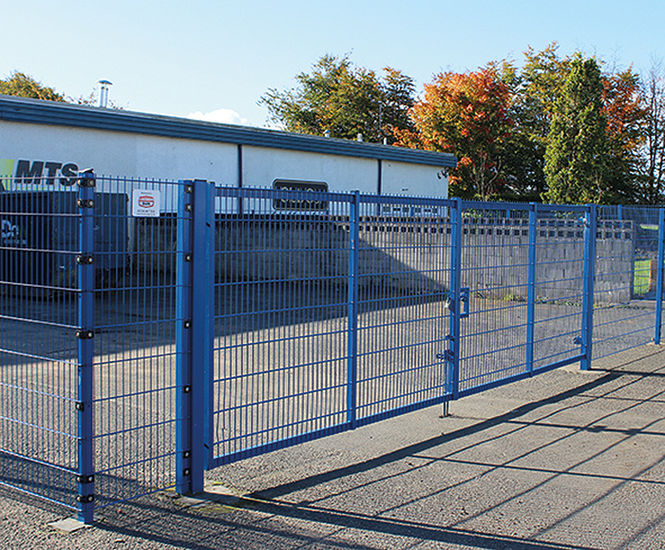

Lochrin FlatGUARD SL1 fencing is part of the LPS1175 A1 (SR1) rated mesh fencing systems from Lochrin Bain. With a heavier gauge of wire than standard mesh systems, the panel offers greater cutting resistance to vandals, and is ideal for use in applications where security is required but without creating an obtrusive and intimidating barrier, the panel is designed to be a strong yet resilient fencing system. It is also capable of blending into its environment and enhancing the surroundings, which is popular with architects and specifiers. Tested to A1 by LPCB against LPS1175 standards and offering at least one minute delay to persistent attack using category A tools such as cable cutters, engineers hooks, glass cutters and pliers, the system is ideal for a range of applications where higher security demarcation is required.

Certification

The system is ‘Secured By Design’ and conforms to BS1722 Part 14 carrying full certification to LPS 1175 Security Rating A1 Issue: 8 as featured in the BRE Red Book.

Key features

  • Full certification to LPS 1175 Security Rating A1 Issue:8
  • Full certification to Secured by Design – a Police preferred specification.
  • Manufactured to BS1722 Part 14
  • Aesthetically pleasing and discreet.
  • Non-intimidating perimeter security solution.
  • Strong yet resilient fencing system.
  • Good cutting resistance to vandals.
  • Suitable for use in most applications where a greater level of security is required, such as inner compounds for utility sites, telecommunication compounds and railway infrastructure.
  • Heights from 1.8 metres to 3.0 metres.
  • A range of Pedestrian and Vehicle gates available to match fencing and LPS1175 certification.
  • Compatible with Electric Fencing and Perimeter Intruder Detection, CCTV to give maximum security.
  • Full specification drawings, Q40 tender documents and technical support available on request.

Specifications

  • Post Section: 60mm x 40mm x 3mm SHS.
  • 40mm x 5mm clamp bar fixing system.
  • M8 IP5-2 Security bolts for threaded inserts in posts.
  • Panels constructed using a 6.0mm vertical wire and twin 8.0mm horizontal wires
  • The mesh aperture consists of 200mm x 50mm spacing.
  • 30mm anti-climb barb top on panels.
  • Panel widths suit post centres of approx. 2520mm and 3020mm.
  • Heights – from 1.8m to 3.0m.
  • Galvanised with Powder Coated options available.
