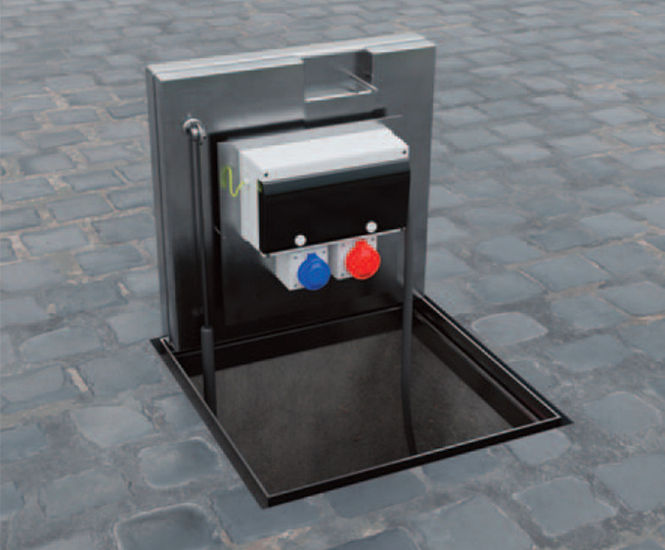

Product name PUPS02 in-ground power unit




PUPS02 in-ground units can be used in smaller spaces to supply an outdoor power supply and telephone connection. They have a double locking lid and can be operated with the lid locked down. Lids are raised manually and are gas strut assisted.

Range

PUPS02 - 4040: total power 32 amps single supply
PUPS02 - 5050: total power 63 amps single supply
PUPS02 - 6060: total power supply TBC
PUPS02 - 7050: total power 125 amps single supply

Technical data

  • For power distribution and other services
  • Totally hidden even in operation
  • Stainless steel cover, recessed to fill with matching surface finish, or closed; cover size 440 x 440 / 570 x 570 / 700 x 500mm
  • Opening facilitated by a pivot partially pulled-out from the lid surface, and a dual gas actuator
  • Overall depth 450 / 550 / 550mm
  • Operates with the cover closed and with plug inserted (max 1 x 63A / 63A / 125A), through a special rubber door for cable outlet
  • Cover secured in closed position by safety bayonet lock in bronze, with lever lock in stainless steel AISI 304 operated with key (square footprint)
  • Removable stainless steel plate for water or electrical equipment support (provision for grounding in this case)


PUPS02 in-ground units can be used in smaller spaces to supply an outdoor power supply and telephone connection. They have a double locking lid and can be operated with the lid locked down. Lids are raised manually and are gas strut assisted.

Range

PUPS02 - 4040: total power 32 amps single supply
PUPS02 - 5050: total power 63 amps single supply
PUPS02 - 6060: total power supply TBC
PUPS02 - 7050: total power 125 amps single supply

Technical data

  • For power distribution and other services
  • Totally hidden even in operation
  • Stainless steel cover, recessed to fill with matching surface finish, or closed; cover size 440 x 440 / 570 x 570 / 700 x 500mm
  • Opening facilitated by a pivot partially pulled-out from the lid surface, and a dual gas actuator
  • Overall depth 450 / 550 / 550mm
  • Operates with the cover closed and with plug inserted (max 1 x 63A / 63A / 125A), through a special rubber door for cable outlet
  • Cover secured in closed position by safety bayonet lock in bronze, with lever lock in stainless steel AISI 304 operated with key (square footprint)
  • Removable stainless steel plate for water or electrical equipment support (provision for grounding in this case)
