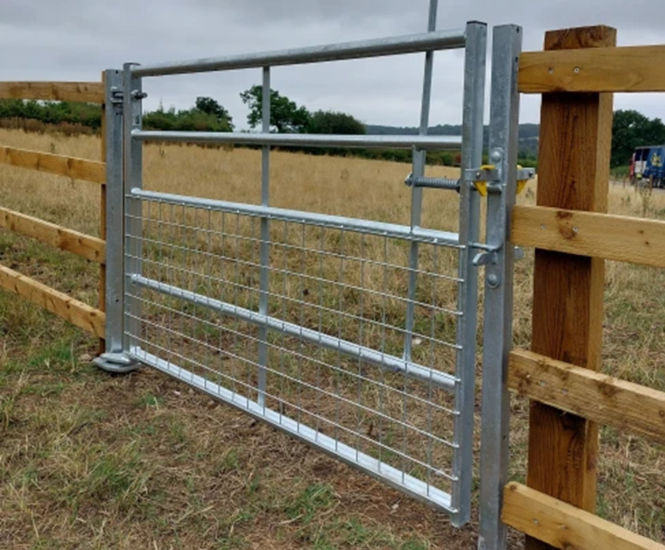

Compton steel bridle gate

Compton steel bridle gate is a two-way, self-closing gate for bridleways, made from galvanised steel with a retractable D loop striker and integral 'H' frame posts. Complies with BS 5709:2018 and the Equality Act, with a gate height of 1.25m, leaf width of 1.525m, and overall width of 1.755m.

  • Two-way self-closing gate for bridleways with integral posts

  • Retractable D loop striker designed for improved user safety

  • Complies with BS 5709:2018 and the Equality Act for accessibility

  • Hot-dipped galvanised finish for corrosion resistance

  • Stock proof mesh to lower half for animal containment

  • Anti-tamper fixings throughout

  • Optional one-way opening conversion kit and handle extension

Applications

  • Bridleways

  • Public rights of way

  • Equestrian routes

  • Rural and countryside access points

  • Locations requiring accessible, self-closing gates

Dimensions

Gate height 1.25m

Gate leaf width 1.525m

Overall width 1.755m

Materials

Galvanised steel

Finish

Hot-dipped galvanised

Options and variations

Straight handle (stock proof handle and tall handle extension also available)

One-way opening conversion kit

Performance

7 year guarantee

Installation

Integral steel 'H' frame gate posts

Self-closing heavy duty hinge system

Anti-tamper fixings

Product accreditations

Complies with BS 5709:2018

Complies with the Equality Act

Warranty

7 years

..........................................................................................................................................................

Ravensden 2-in-1 steel combination gate

Ravensden 2-in-1 steel combination gate is designed for locations where authorised vehicle access is required on a footpath or bridleway, combining a bridle gate for public access with a lockable field gate for authorised users. Complies with BS 5709:2018 and the Equality Act.

  • 2-in-1 gate system for both public and authorised vehicle access

  • Made from galvanised steel with stock proof mesh to lower half

  • Integral steel 'h' frame gate post and self-closing heavy duty hinge system

  • Bridleway handle and easy-access latch with straight handle

  • Field gate conversion kit includes padlock-able drop bolt

  • Anti-tamper fixings throughout

  • One-way opening conversion kit available as an optional extra

Applications

  • Footpaths

  • Bridleways

  • Public rights of way requiring controlled vehicle access

  • Rural and countryside access points

  • Locations needing compliance with accessibility standards

Dimensions

Gate height 1.25m

Gate leaf width 1.5m

Gate overall width 1.65m

Materials

Galvanised steel

Finish

Hot-dipped galvanised

Options and variations

One-way opening conversion kit

Product accreditations

Complies with BS 5709:2018

Complies with the Equality Act
