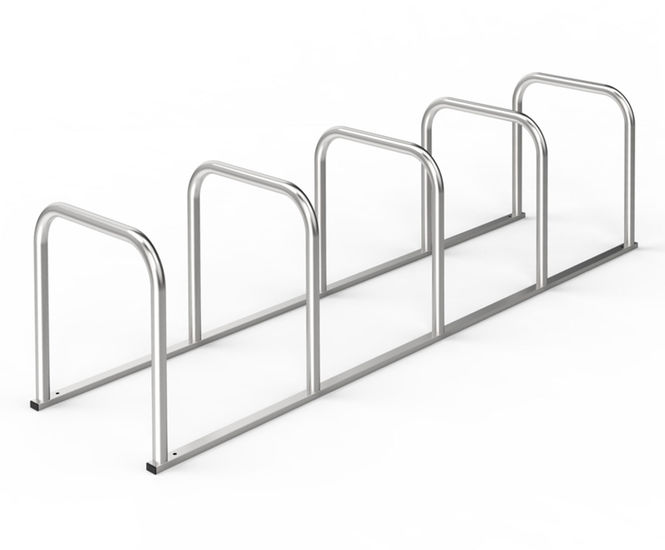

Sheffield Cycle Rack is a double-sided cycle storage system made from stainless steel (304 or 316) or galvanised mild steel, with options for Rilsan coating. Designed for secure above-ground installation, it uses 48mm diameter tube and a 50 x 55 x 3mm box section anchor. Available fully welded or for self-assembly, with lengths starting at 750mm and customisable hoop numbers.

  • Double-sided cycle rack for secure bike storage
  • Made from stainless steel (304/316) or galvanised mild steel
  • Choice of fully welded or self-assembly construction
  • Customisable number of hoops to suit project needs
  • Reflective tape can be applied for visibility
  • Above-ground anchor point for stability
  • Hot dip galvanised to BS EN ISO 1461 for corrosion resistance

Applications

  • Public cycle parking areas
  • Schools and universities
  • Commercial and retail developments
  • Transport hubs
  • Residential complexes
  • Parks and recreational spaces

Dimensions

Minimum length 750mm

48mm diameter tube

50 x 55 x 3mm box section anchor

Materials

Stainless steel 304 or 316

Mild steel, galvanised or Rilsan coated

Finish

Hot dip galvanised

Rilsan coated

Options and variations

Fully welded or self-assembly

Customisable number of hoops

Installation

Requires 4 x M12 diameter anchor bolts per rack

Accreditations

Galvanised to BS EN ISO 1461
