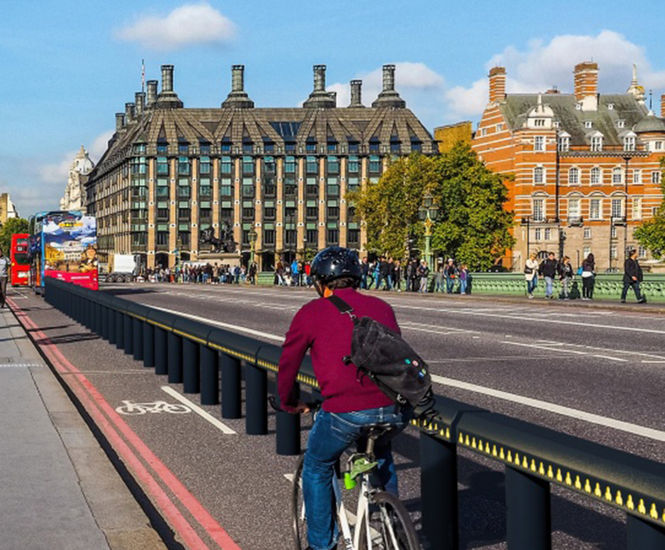

IWA 14 Terra Lunar anti-terrorist ultra-shallow static bollards are designed for bridge and pathway protection, stopping a 7.2-tonne vehicle at 30mph with minimal foundation depth of 75mm. Made for installation where foundation depth is limited, these bollards maintain pathway and cycleway safety without damaging bridge structure.

  • Ultra-shallow static bollard system for bridge and pathway protection

  • Foundation depth of only 75mm, suitable for restricted sites

  • Impact tested to IWA 14, stopping 7.2t at 30mph with minimal penetration

  • Remains upright and undamaged after impact

  • Articulated connections allow for bridge movement and expansion

  • Modular design for quick installation and easy maintenance

  • Crash tested with decorative top sleeve options

Applications

  • Bridge protection

  • Cycleways and pedestrian pathways

  • Urban walkways

  • Linear city routes with limited foundation depth

  • Pavements and kerbside installations

Dimensions

Height above concrete plinth: 960mm

Diameter: 219mm

Foundation depth: 75mm, topping 30mm

Performance

Impact tested to IWA 14: V/7200[N2A]/48/30:0.2

Stops 7.2t vehicle at 30mph, 30° angle

Minimal penetration, no encroachment onto pathway or cycleway

Materials

Made from S355 structural steel plate

Finish

Shotblasted, hot zinc sprayed, primed, polyurethane paint

Optional 316 stainless steel satin or bead blasted sleeves

Accreditations

IWA 14 impact tested

Secured by Design

Installation

Ultra-shallow foundation of 75mm

Articulated flexible linkages for bridge movement
