Voute cycle shelter
Voute cycle shelter is made from galvanised and painted steel with aluminium roof cross members and guttering. Canopy uses 6mm anti-UV treated cellular polycarbonate: modular cycle shelter for bicycle storage and protection; galvanised and painted steel frame with aluminium roof supports; 6mm anti-UV treated cellular polycarbonate canopy; optional
Click for full image

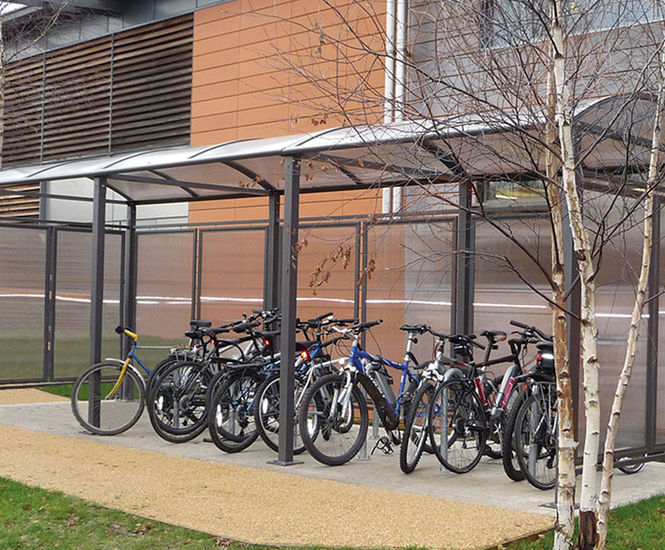

Voute cycle shelter with additional extension units
Voute cycle shelter is made from galvanised and painted steel with aluminium roof cross members and guttering. Canopy uses 6mm anti-UV treated cellular polycarbonate.
Modular cycle shelter for bicycle storage and protection
Galvanised and painted steel frame with aluminium roof supports
6mm anti-UV treated cellular polycarbonate canopy
Optional 10mm anti-UV treated polycarbonate back and side cladding
Height adjustable feet
Optional LED lighting
Extension units for increased capacity
Applications
Public spaces
Schools
Workplaces
Dimensions
Length 2500mm
Extension unit length 2500mm
Materials
Steel
Aluminium roof cross members and guttering
Cellular polycarbonate canopy and cladding
Finish
Galvanised and painted steel
Options and variations
Optional LED lighting
Optional back and side cladding in 10mm polycarbonate
