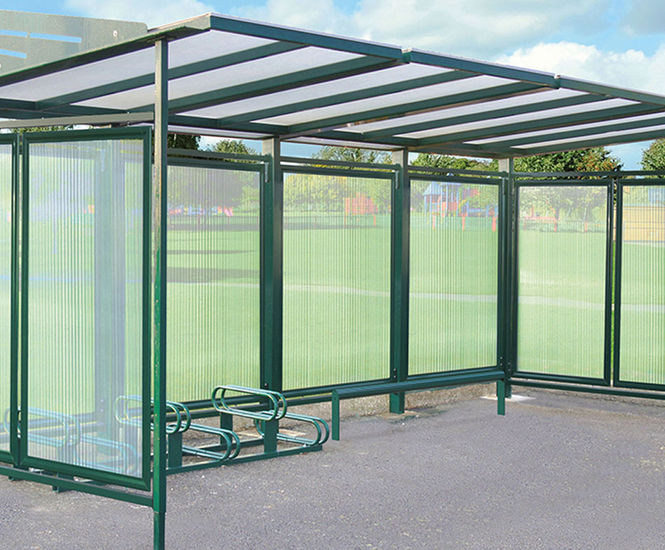

Conviviale® cycle shelter is a steel-framed bicycle shelter designed for outdoor cycle parking. Made from galvanised and painted steel with a 10mm anti-UV treated tinted polycarbonate canopy, it can be extended with 1300mm units and concreted directly into the ground. Optional back and side cladding in 10mm anti-UV treated cellular polycarbonate is available.

  • Outdoor cycle shelter with steel frame and polycarbonate canopy

  • 2700mm main unit length, 1300mm extension units

  • Galvanised and painted finish in standard colours

  • Square steel posts 100×60mm, roof structure in 50×30mm steel tube

  • Canopy and optional cladding made from 10mm anti-UV treated polycarbonate

  • Direct-to-ground concrete installation

Applications

  • Public cycle parking

  • Schools and universities

  • Commercial premises

  • Transport hubs

Dimensions

Length 2700mm

Extension units 1300mm

Square steel posts 100×60mm

Roof structure 50×30mm

Canopy thickness 10mm

Materials

Galvanised and painted steel

Polycarbonate (canopy and optional cladding)

Finish

Galvanised and painted in standard colours

Options and variations

Optional back and side cladding in 10mm anti-UV treated cellular polycarbonate

Installation

Concreted directly into ground
