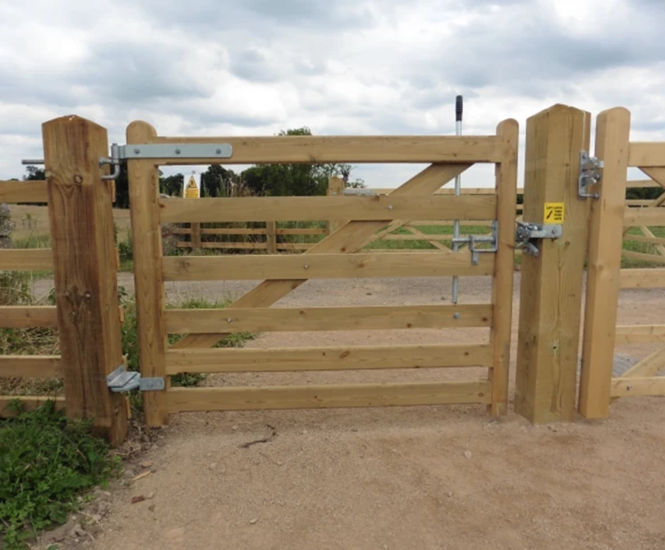

Belvoir Bridleway Gate

Belvoir Bridleway Gate is a one-way, self-closing heavy duty timber gate designed for bridleways in natural areas where two-way gates are unsuitable, meeting BS 5709:2018 and DDA standards, supplied with posts and pre-fitted fittings, made from UC4 treated redwood for a 15-year service life.

  • One-way self-closing timber gate for bridleways

  • Supplied with pre-fitted hinge, Easy Access latch, and long straight handle

  • Gate posts included, 2.1m x 150 x 150mm with weathered tops

  • 6-bar planed redwood gate with eased edges and double thickness lower rails

  • UC4 treated timber for extended outdoor durability

  • Optional trombone handles

Applications

  • Bridleways in areas of natural beauty

  • Public rights of way

  • Equestrian access points

  • Locations requiring DDA and BS 5709:2018 compliance

Dimensions

Gate height 1.2m

Gate leaf width 1.5m

Overall width 1.7m

Gate posts 2.1m x 150 x 150mm

Materials

Redwood timber

Finish

Planed with eased edges

Options and variations

Trombone handles

Performance

15 year desired service life

Installation

Supplied with gate posts and pre-fitted gate fittings

Product accreditations

BS 5709:2018 compliant

DDA compliant

Warranty

15 year desired service life/warranty

Rutland Bridle Gate

Rutland Bridle Gate is a two-way opening timber gate designed for bridleways, especially in areas of natural beauty. Made from planed redwood timber with eased edges, it includes a self-closing hinge, Easy Access latch, and long straight handle. Supplied with redwood gate posts and fittings, it meets BS 5709:2018 and DDA compliance standards.

  • Timber bridle gate for bridleways and countryside access

  • Two-way self-closing hinge for easy use in both directions

  • Planed redwood timber with eased edges for safety and appearance

  • Double thickness bottom rails for added strength

  • Easy Access latch and long straight handle for accessibility

  • Supplied with redwood gate posts and all required fittings

  • Complies with BS 5709:2018 and DDA standards

Applications

  • Bridleways

  • Public rights of way

  • Areas of natural beauty

  • Equestrian routes

  • Countryside access points

Dimensions

Gate height 1.2 m

Gate leaf width 1.5 m

Overall width 2.05 m

Gate posts 2.4 m x 175 mm x 175 mm

Materials

Redwood timber

Finish

Planed with eased edges

Options and variations

Trombone handles available as an optional extra

Performance

UC4 specification for 15 year desired service life

Installation

Supplied with fitted gate fittings and posts

Product accreditations

BS 5709:2018 compliant

DDA compliant

Hampshire Bridle gate

Hampshire Bridle Gate is a two-way opening gate made from a galvanised steel H frame and a 6-bar redwood timber gate, designed for bridleways and equestrian access. Supplied with gate fittings, self-closing hinge, Easy Access latch, and straight handle. Gate height 1.2m, leaf width 1.5m, overall width 1.8m.

  • Two-way opening bridle gate with steel frame and timber gate

  • Integral steel H frame for structural support

  • 6-bar planed redwood timber with eased edges

  • Double thickness bottom rails for added strength

  • Self-closing hinge and Easy Access latch included

  • All timber treated to UC4 for 15-year service life

  • Trombone handle option available

Applications

  • Bridleways

  • Equestrian routes

  • Public rights of way

  • Rural and countryside access points

Dimensions

Height 1.2m

Gate leaf width 1.5m

Overall width 1.8m

Materials

Galvanised steel H frame

Redwood timber gate

Finish

Hot-dipped galvanised steel

UC4 treated timber

Options and variations

Straight, trombone, or stock proof handle

Performance

Timber treatment to UC4 for 15-year desired service life

Installation

Supplied with gate fittings and self-closing hinge
